SL/TL series.
Agile machines
for loading &
lifting.

  • 66-74 HP

    Power range

  • 2,435 CC

    Engine displacement

  • 100 L

    Fuel tank

Designed for those who value
comfort & safety in every task.

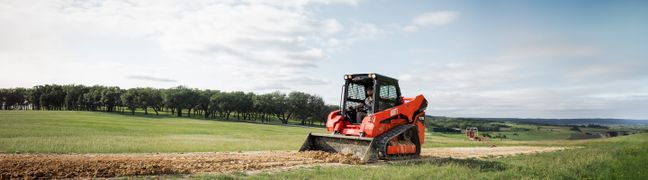

Agile machines for loading, lifting and material handling in tight spaces. Compact dimensions and attachment versatility support agriculture, landscaping and construction.

  • Effortless Control, Maximum Precision

    Designed for intuitive, precise control, even during demanding, repetitive tasks. Hydraulic pilot controls, multifunction joysticks, self-leveling operation, intelligent engine-speed management, digital monitoring, and hydraulic quick-attach functionality help operators work more efficiently and comfortably.

  • Safety Built In

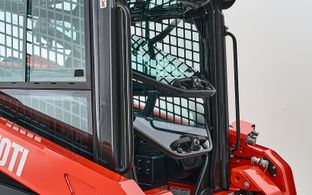

    Integrated safety features protect the operator during both normal operation and unexpected situations. Features include a sliding overhead door, control interlock system, escort lighting, emergency boom-down function, emergency rear exit, and a standard rear-view camera

  • More Lift. More Reach. More Productivity.

    Delivering strong hydraulics, reliable lift performance, and excellent traction to handle heavy-duty tasks with ease. Ride Control, Flow+ hydraulics, vertical lift path, two-speed travel, and exceptional lift height support higher productivity on demanding jobsites

Features

Explore all the SL/TL series' features.

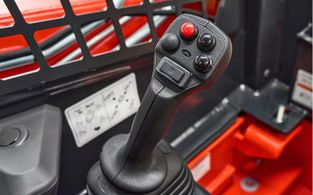

Precision Pilot Joystick

Hydraulic pilot and multifunction joysticks provide intuitive, responsive control for precise operation while reducing operator fatigue.

Digital display

Color display shows fault codes, error messages, rearview camera feed, and maintenance information for real-time machine monitoring.

Self-leveling system

Keeps the bucket level while lifting, reducing spillage and eliminating the need for manual adjustments.

Engine speed control

Maintains consistent engine speed while allowing responsive RPM adjustment for varying workloads.

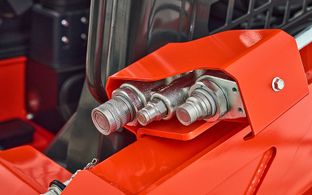

Hydraulic quick attach

Allows attachment changes from inside the cab at the push of a button, reducing downtime.

Rear view camera

Integrated camera provides clear visibility when reversing and can be activated at any time from inside the cab.

Flow and hydraulics

Enhanced auxiliary hydraulic performance offers efficient power delivery for light- and medium-duty attachments.

Vertical lift path

Raises loads straight up for improved stability, greater lift height, and enhanced operating capacity.

Outstanding airflow

Five optimised air vents provide effective heating and cooling while helping maintain clear visibility in all weather conditions.

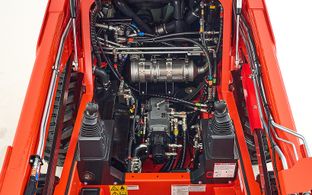

Tilt-up cabin

Gas-spring-supported tilt-up cab provides fast access for maintenance, reducing downtime and simplifying servicing.

Specifications

Side by side comparison.

Model

SL660E-L

SL750E-LQ

SL750E-LQF

TL750E-LQF

Engine

Engine
Manufacturer Daedong Daedong Daedong Daedong
Model 4HTS 4HTI5 4HTI5 4HTI5
Emissions Standard - - - -
Engine Net Power (SAE J1349) Hp 63 69.7 69.7 69.7
Engine Max Power Hp 66.4 73.4 73.6 73.6
Rated revolution rpm 2400 2400 2400 2400
No.of cylinders 4 4 4 4
Total displacement cc 2435 2435 2435 2435
Turbo Charge cc

Capacity

Capacity
Fuel tank ℓ L 94 100 100 100

Hydraulic

Hydraulic
Hydraulic Flow - Basic - - - -
Loader Hydraulic Pressure bar 219 230 230 230

Undercarriage

Undercarriage
Track Width mm na na na 400
Travel Speed_2nd Low kph na na na 7.5
Travel Speed_2nd High na na na 11.5

Power Train

Power Train
Travel Speed_2nd: Low 11.5 11.5 11.5 N/A
Travel Speed_2nd: High 17.3 19.4 19.4 N/A

Operating Specifications

Operating Specifications
Operating weight w/o operator kg 3389 3841 3887 4535
Control ISO Pilot ISO Pilot ISO Pilot ISO Pilot

Cab

Cab
FOPS Level II x x x x

Dimensions

Dimensions
Wheelbase mm 1080 1200 1200 1435
Length W/Bucket on the ground mm 3587 3675 3675 2950
Hight to top of cab (w/beacon) mm 2160 2161 2161 3675
Reach at max lift and dump mm 950 949 949 203
Wheel base mm 1080 1200 1200 1435
Ground(Crop) clearance mm 145 195 195 2585
Verhicle width over tires mm 1690 1820 1820 x

Environmental (Noice Level, Vibration)

Environmental (Noice Level, Vibration)
Whole body vibration (ISO 2631-1) m/s-2 0.371 0.371 0.371 0.439

Options

Options
2 speed Std. Std. Std. Std.
Airconditioning / Heater Std. Std. Std. Std.
Suspension seat Std. Std. Std. Std.
CAB Std. Std. Std. Std.
Radio / Blue tooth / USB Opt. Opt. Opt. Opt.
Telemetics Std. Std. Std. Std.
