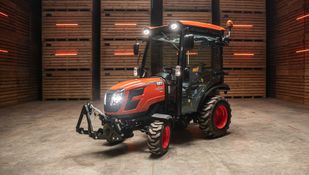

CX series.
The verstatile
compact
tractor.

  • 25 HP

    Power range

  • 1,647 CC

    Engine displacement

  • 25 L

    Fuel tank

CX series’ strengths,
matching your work needs.

The CX Series is an agile compact tractor for everyday maintenance and light-duty professional work. Easy to operate and highly manoeuvrable, it is perfectly suited to properties, green spaces and municipal applications.

  • Compact 25 HP for Versatile Applications

    The dependable 25 HP Daedong diesel engine delivers the right level of performance for property maintenance, landscaping, and light agricultural work. Its compact design combines power with excellent everyday practicality.

  • Agile in Tight Spaces

    Compact dimensions, a tight turning radius, and excellent all-round visibility allow for precise operation around buildings, trees, and landscaped areas. Hydrostatic power steering makes maneuvering effortless and ensures confident control.

  • Easy to Operate, Reliable at Work

    The CX Series is designed for intuitive and comfortable operation. Ergonomically positioned controls, a clear operator platform, and easily accessible service points simplify daily tasks for both experienced operators and first-time users.

Features

Explore all the CK series' features.

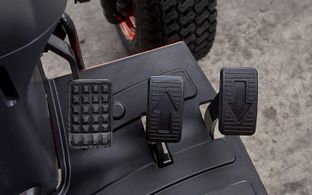

Hydrostatic transmission (HST)

The two-stage HST transmission can be easily controlled via the two gas pedals and enables a quick and easy change of direction.

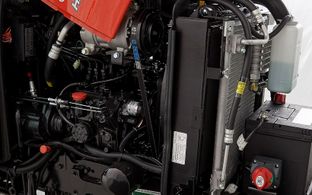

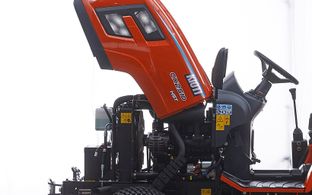

One-piece hood

The one-piece hood can be easily folded upward to provide easy access to the usual maintenance points.

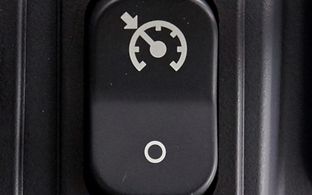

Tempomat

With cruise control, even longer distances can be covered comfortably and effortlessly.

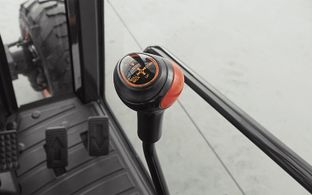

Cross control lever

The CX models are equipped with a cross control lever as a standard feature. It is ergonomically integrated into the side console and allows convenient operation of attachments.

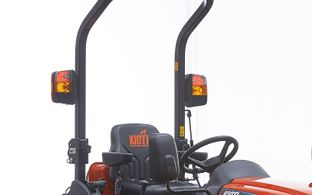

Folding bow

The safety bar on models with an open platform can be conveniently folded down.

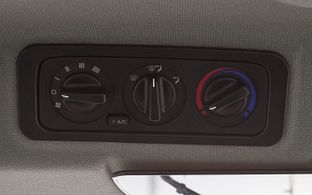

Air conditioning system

Comfortable in summer and winter: The CX2510 with cab comes with air conditioning and heat as standard features.

Compact design

The narrow external width and high maneuverability allow use in confined spaces in both summer and winter.

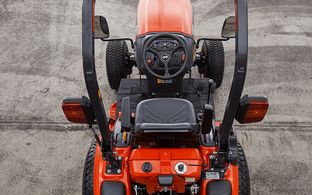

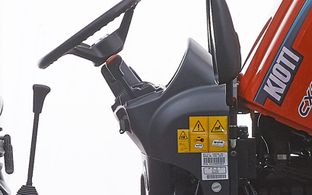

Power steering

The steering wheel can be adjusted independently. Together with a tight turning radius, the hydrostatic power steering makes maneuvering effortless.

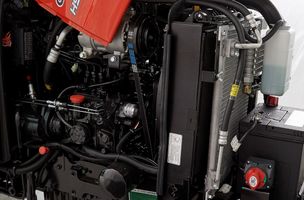

1.6 liter diesel engine

With a 1.6 liter diesel engine, the CX series has sufficient power for both private and commercial use.

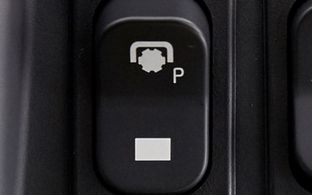

Stationary PTO

After activating the switch for the S-PTO, the PTO can be operated without the driver having to be on the seat (e.g. for chopping wood).

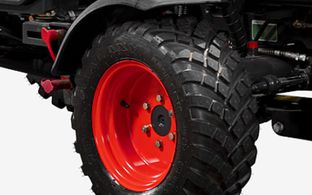

Front wheel fender

The front mudguards for the CX2510 swivel with the wheels and prevent spray water from reaching the platform or the cab window.

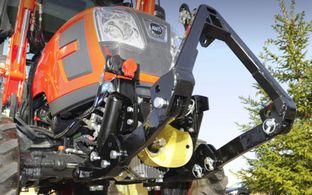

Front PTO (MATEV)

The CX2510 can optionally be equipped with a front PTO (direct drive from the engine or through drive from the intermediate axle PTO).

Specifications

Side by side comparison.

Model

CX2520H-EU

CX2520-EU

CX2510D-EU

CX2510CH-EU

Engine

Engine
Manufacturer KIOTI KIOTI KIOTI KIOTI
Control Mechanical Mechanical Mechanical Mechanical
Emissions Standard 5 5 5 5
Engine Gross Power (ECE-R120) HP HP(kw) 24.5(18.3) 24.5(18.3) 24.5(18.3) 24.5(18.3)
Rated revolution rpm 2600 2600 2600 2600
No.of cylinders 3 3 3 3
Total displacement cc 1647 1647 1647 1647
Turbo Charge cc NA NA NA NA

Capacity

Capacity
Fuel tank ℓ 25 25 25 25

PTO

PTO
Maximum PTO Power HP 20.4 19.3(14.4) 19.3(14.4) 20.4
Rear PTO Independent Transmission Transmission Independent
Rear PTO rpm 540 540 540 540

Hydraulic

Hydraulic
3 Point Lift Control Type Position Position Position Position
3-point hitch type Category I Category I Category I Category I
Lift capacity at lift point kg.f(lbs.) 739(1629) 739(1629) 739(1629) 739(1629)
Lift capacity at 24 in.behind lift point kg.f(lbs.) 546(1203) 546(1203) 546(1203) 546(1203)

Drive Train

Drive Train
Transmission Hydrostatic Manual Manual Hydrostatic
Main gear shift x range gear shift INF. 3 3 x 2 3 x 2 INF. 3
shuttle Type - Synchro shuttle Synchro shuttle -
Steering Power Steering Power Steering Power Steering Power Steering

Traveling Speeds

Traveling Speeds
Forward km/h(mph) 0-21.74 1.22-19.07 1.22-19.07 0-21.74

Other features

Other features
Tilt steering O O O O

Dimensions

Dimensions
Overall length (without 3-pt hitch) mm 2467 2467 2467 2550
Overall width(minimum tread) mm 1368 1368 1368 1368
Overall height(with ROPS) mm 2328 2318(91.3) 2048(80.6) -
Overall height (Top of Cabin) AG mm - - - 2190
Wheel base mm 1520(59.8) 1520(59.8) 1520(59.8) 1520(59.8)
Ground(Crop) clearance mm 318 318 318 265 (mid pto)

Functional Specifications

Functional Specifications
Creep gear X X X X
4WD Std Std Std Std
Rear Remote Hydraulic Valve No. of Valves 1 ( Std. ) 1 ( Std. ) 1 ( Std. ) 1 ( Std. )
Rear Remote Hydraulic Valve Port 사양 1/2" 1/2" 1/2" 1/2"
Joystick valve Std Std Option Std
Differential lock warning X X X X
Air Conditioner X X X Std
HST CRUISE Std X X Std
HST LINK Std X X Std
Telematics Std Std Std Std
