DK series.
The compact
tractor for
big jobs.

  • 45-58 HP

    Power range

  • 1,826 CC

    Engine displacement

  • 45-48 L

    Fuel tank

Strengths Tailored to
Your Tasks.

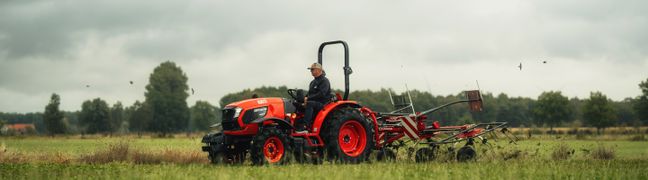

DK Series Compact Tractors are designed for those who demand premier performance in a compact tractor. KIOTI's most powerful compact tractors conquer the toughest terrain and tasks with ease, while remaining nimble to navigate tight spaces.

  • Powerful 1.8L Diesel Engine

    The dependable 1.8L Daedong CRDI diesel engine delivers between 45 and 58 HP, depending on the model. High torque and efficient fuel consumption provide reliable performance for everyday tasks in agriculture, landscaping, and property maintenance.

  • Power and Agility in a Compact Package

    The DK Series combines the capabilities of a utility tractor with compact dimensions. Responsive steering, excellent all-round visibility, and a tight turning radius enable precise operation, even in confined spaces and around buildings.

  • Versatile Compatibility with Implements

    Front loaders, rear-mounted implements, and PTO-driven equipment make the DK Series a productive year-round solution. Its powerful hydraulic system and rear three-point hitch ensure quick implement changes and reliable operation across a wide range of applications.

Features

Explore all the RX series' features.

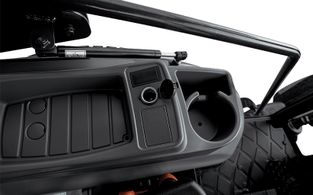

Spacious Storage Area

The storage area is located directly next to the 12V power port and makes it easy to charge personal devices.

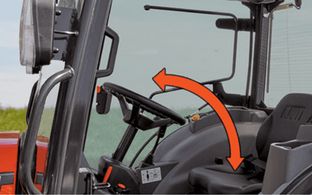

Adjustable Steering Wheel

With or without a cab, the pivoting steering column in the DK series can be ideally adapted to the driver.

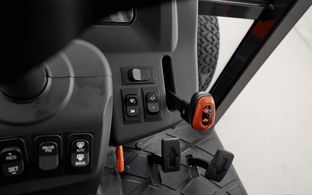

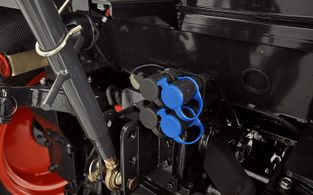

Rear Hydraulics

The DK series models come with two double-acting control units at the rear as standard features to enable flexible hydraulic operation of attachments.

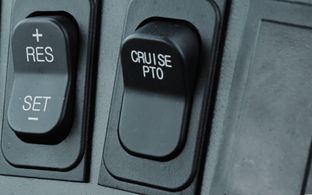

Tempomat

The accelerator pedal and thus the driving speed can be fixed at the touch of a button using a magnetic switch.

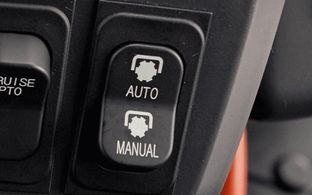

Automatic PTO Shift

The activated rear PTO can be coupled to the rear power lift via the Auto PTO function and can be switched on and off automatically by raising and lowering.

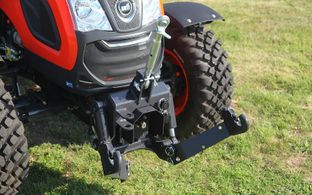

Front Power Lift and PTO Shaft

The front PTO and front power lift make the DK series versatile. This means that a snow blower can be used in winter or, for example, sweeping rollers in summer.

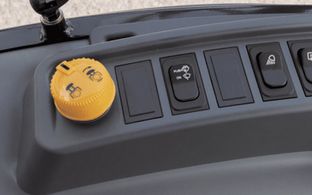

PTO Shift

The independent, electro-hydraulic PTO shift can be conveniently activated and deactivated using the switch in the side console.

Speed Memory

The engine speed can be saved on CRDI models. This allows the engine speed to resume again automatically after a turning maneuver.

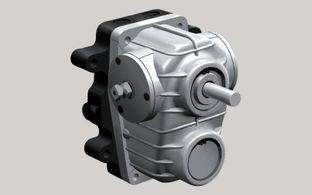

Hydrostatic Transmission

The powerful hydrostatic transmission with its three speeds guarantees high productivity and simple operation thanks to the two-pedal control.

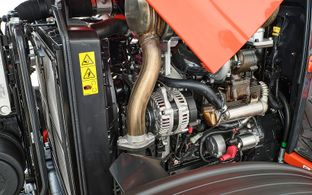

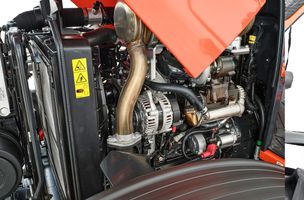

Common Rail Diesel Technology

The lively Stage V engines with Common Rail Diesel Injection (CRDI) technology not only meet the latest environmental standards, they are also fuel-efficient and smooth-running.

Specifications

Side by side comparison.

Model

DK4530N-EU DK4530HS-EU

DK5030N-EU/ DK5030(N)HS-EU

DK6030N-EU/ DK6030HS-EU

DK4530H-EU

DK4530C-EU

DK4530CH-EU

DK5030H-EU

DK5030C(N)-EU

DK5030CH-EU

DK6030H-EU

DK6030C(N)-EU

DK6030CH-EU

Engine

Engine
Manufacturer KIOTI KIOTI KIOTI KIOTI KIOTI KIOTI KIOTI KIOTI KIOTI KIOTI KIOTI KIOTI
Transmission Manual / H-Shuttle Manual / H-Shuttle Manual / H-Shuttle HST Manual HST HST Manual Manual HST Manual HST
Emissions Standard 5 5 5 5 5 5 5 5 5 5 5 5
Engine Gross Power (ECE-R120) HP 44.9(33.5) 50.3 (37.5) 57.7(43.0) 44.9(33.5) 44.9(33.5) 44.9(33.5) 50.3(37.5) 50.3(37.5) 50.3(37.5) 57.7 (43) 57.7 (43) 57.7 (43)
Rated revolution rpm 2600 2600 2600 2600 2600 2600 2600 2600 2600 2600 2600 2600
No.of cylinders 3 3 3 3 3 3 3 3 3 3 3 3
Total displacement cc 1826 1826 1826 1826 1826 1826 1826 1826 1826 1826 1826 1826
Turbo Charge Fixed Waste Gate Fixed Waste Gate Fixed Waste Gate Fixed Waste Gate Fixed Waste Gate Fixed Waste Gate Fixed Waste Gate Fixed Waste Gate Fixed Waste Gate Fixed Waste Gate Fixed Waste Gate Fixed Waste Gate

Capacity

Capacity
Fuel tank ℓ 45 45 45 48 48 48 48 48 48 48 48 48

PTO

PTO
Maximum PTO Power HP 37.6 40.9 49.7 36.5 36.5 36.5 41.8 41.8 41.8 47 50.2 47
Rear PTO Power HP - - - 32.8 32.8 32.8 39.2 39.2 39.2 45.1 49.6 45.1
Rear PTO Effeciency % - - - 73 73 73 78.3 78.3 78.3 77.8 77.8 77.8
Rear PTO Speed rpm - - - 553 553 553 553 553 553 553 553 553

Hydraulic

Hydraulic
3 Point Lift Control Type Position, Draft, Mixed Control Position, Draft, Mixed Control Position, Draft, Mixed Control Position Control Position, Draft, Mixed Control Position Control Position Control Position, Draft, Mixed Control Position Control Position Control Position, Draft, Mixed Control Position Control
Total hydraulic flow lpm 55.1 55.1 55.1 62.4 62.4 62.4 62.4 62.4 62.4 62.4 62.4 62.4
3-point hitch type Certification: Category I Actual Installation: Category II Cat 1 Cat 1 Cat 1 Cat 1 Cat 1 Cat 1 Cat 1 Cat 1 Certification: Category I Actual Installation: Category II Certification: Category I Actual Installation: Category II Certification: Category I Actual Installation: Category II
@lift point (Through the full range) kg.f 1417 1417 1417 1417 1417 1417 1417 1417 1417 1417 1417 1417
@610mm point (Through the full range) kg.f 1467 1467 1467 1467 1467 1467 1467 1467 1467 1467 1467 1467

Max. Trailer loading weight kg.f

Max. Trailer loading weight kg.f
No.of standard remote valves (Front/Rear) 4 4 4 4 4 4 4 4 4 4 4 4

Drive Train

Drive Train
Main gear shift x range gear shift 4 x 4 4 x 4 4 x 4 3 Range 4 x 4 3 Range 3 Range 4 x 4 3 Range 3 Range 4 x 4 3 Range
No. of speeds 16F 16R 16F 16R 16F 16R Infinite 16F 16R Infinite Infinite 16F 16R Infinite Infinite 16F 16R Infinite
shuttle Type Synchro shuttle Synchro shuttle / H-Shuttle Synchro shuttle / H-Shuttle HST Synchro shuttle HST HST Synchro shuttle HST HST Synchro shuttle HST
Steering Hydrostatic Power Steering Hydrostatic Power Steering Hydrostatic Power Steering Hydrostatic Power Steering Hydrostatic Power Steering Hydrostatic Power Steering Hydrostatic Power Steering Hydrostatic Power Steering Hydrostatic Power Steering Hydrostatic Power Steering Hydrostatic Power Steering Hydrostatic Power Steering
Mechanical differential lock Rear Std. Rear Std. Rear Std. Rear Std. Rear Std. Rear Std. Rear Std. Rear Std. Rear Std. Rear Std. Rear Std. Rear Std.

Traveling Speeds

Traveling Speeds
Forward km/h 0.34 - 32.8 0.34 - 32.8 0.34 - 32.8 0 - 29.7 0.34 - 32.8 0 - 29.7 0 - 29.7 0.34 - 32.8 0 - 29.7 0 - 29.7 0.34 - 32.8 0 - 29.7

Other features

Other features
Tilt steering Std. Std. Std. Std. Std. Std. Std. Std. Std. Std. Std. Std.

Dimensions

Dimensions
Overall length (w/o front weight and w/o 3pt hitch) mm 3019 3019 3019 3055 3055 3055 3055 3055 3055 3055 3055 3055
Overall length (w/o front weight and w/3pt hitch) mm 3288 3288 3288 3310 3310 3310 3310 3310 3310 3310 3310 3310
Overall length (w/front weight and w/3pt hitch) mm 3587 3587 3587 3623 3623 3623 3623 3623 3623 3623 3623 3623
Overall height (CAB) mm - - - - 2363 2363 2458 2363 2363 2458 2363 2363
Overall height (ROPS) mm Standard 2458 Narrow 2233 Standard 2458 Narrow 2233 Standard 2458 Narrow 2233 2458 2363 2363 2458 2363 2363 2458 2363 2363

Overall width (w/AG tire)

Overall width (w/AG tire)
Wheel base mm 1810 1810 1810 1810 1810 1810 1810 1810 1810 1810 1810 1810
Ground(Crop) clearance mm 386 386 386 368 368 368 368 368 368 368 368 368
Weight (w/AG tire w/o weight) 1610 1610 1610 1598 1848 1887 1598 1848 1887 1598 1848 1887
Max. permissible weight kg.f ROPS : 2885 CABIN : 3150 ROPS : 2885 CABIN : 3150 ROPS : 2885 CABIN : 3150 2885 3447 3447 2885 3447 3447 2885 3447 3447

Functional Specifications

Functional Specifications
Creep gear Std. Std. Std. - Std. - - Std. - - Std. -
4WD Std. Std. Std. Std. Std. Std. Std. Std. Std. Std. Std. Std.
Front PTO N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
Rear PTO Std. Std. Std. Std. Std. Std. Std. Std. Std. Std. Std. Std.
Rear Remote Hydraulic Valve (No. of Valves) N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
Joystick valve N/A N/A N/A Std. Std. Std. Std. Std. Std. Std. Std. Std.
Air Conditioner N/A N/A N/A N/A Opt. Opt. N/A Opt. Opt. - Opt. Opt.
Air suspension seat N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
Telematics Std. Std. Std. Std. Std. Std. Std. Std. Std. Std. Std. Std.
