RX series.
Versatile power
for farm and
transport.

  • 66-73 HP

    Power range

  • 2,435 CC

    Engine displacement

  • 85-100 L

    Fuel tank

Built to Meet
Your Challenges.

The RX Series utility tractors bridge the gap between value and raw power, empowering farmers and ranchers to tackle demanding tasks with ease.

  • Powerful 2.4L Diesel Engine

    The 2.4L four-cylinder Daedong CRDI diesel engine delivers either 66 or 74.1 HP, depending on the model. Turbocharging and electronic fuel injection provide strong performance while maintaining efficient fuel consumption.

  • High-Performance Hydraulic System

    The hydraulic system delivers a total flow of 78 L/min. Up to five double-acting remote valves, a rear lift capacity of 2,928 kg, and a standard joystick control enable efficient operation of hydraulic implements and front loaders.

  • Built for Intensive Loader Work

    A power shuttle transmission, hydrostatic power steering, and a tight turning radius make frequent direction changes quick and effortless. The standard joystick and panoramic roof provide precise loader control and excellent visibility of raised front loader attachments.

Features

Explore all the RX series' features.

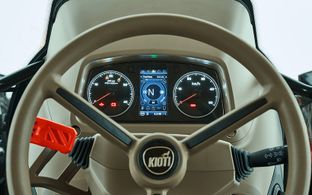

Power steering

Minimizes the effort required to make tight, repetitive turns. The steering wheel tilts with the simple push of lever, allowing easy adjustment to fit the operator's needs.

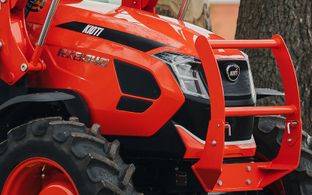

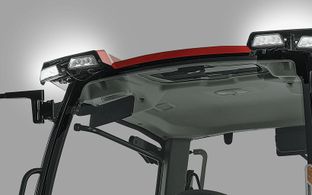

Projection head and working lamp

The LED projection head and working lamp pierce the darkness, casting a wide, clear beam that illuminates your field for safe, precise maneuvering even after sunset.

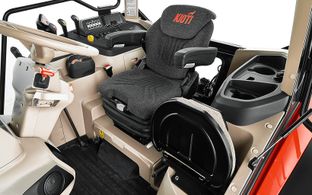

Deluxe suspension seat (cab models)

The ergonomically designed, fully adjustable suspension seat cradles you in support, no matter how harsh the ride. A handy pocket on the back of the seat gives you instant access to the operator's manual.

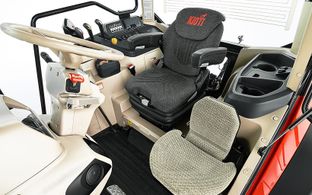

Optional instructor seat (cab models)

The optional instructor seat lets a second person ride along in the cab, making it easier to train a new operator or talk through a job as it happens.

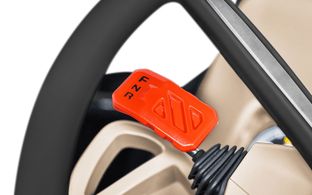

Power shuttle lever (power shuttle models)

Effortlessly change forward and reverse direction with the Power Shuttle Lever, no clutch pedal required

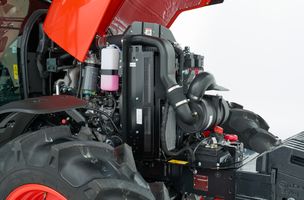

Streamlined hood design

The hood design provides the operator with excellent visibility and the vertical opening enables quick and convenient access for maintenance.

Push button 4 wheel drive

4WD is engaged with the simple push of a button. Auto 4WD engagement allows for increased brake performance.

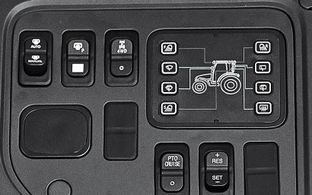

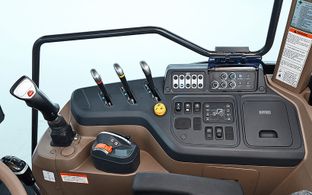

Grouping of levers and switches

Levers and switches used to conduct similar tasks are grouped for better convenience.

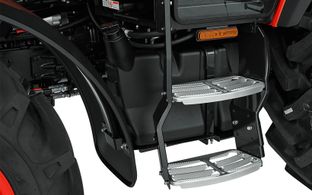

Left/right two steps

Installed steps on both sides where the bottom level is adjustable to enable workers to easily get on and off anywhere. Installed plates help blow foreign residues from wheels.

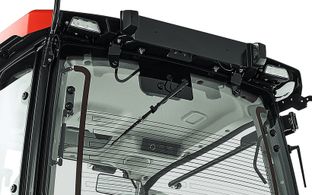

Front/rear wiper

Enhanced the front wiper motor capacity while introducing user modes for improved performance, facilitating effortless visibility enhancement by effectively clearing away dirt and dust.

Specifications

Side by side comparison.

Model

RX8040P-EU

RX7040PC-EU

RX8040PC-EU

Engine

Engine
Manufacturer KIOTI KIOTI KIOTI
Transmission Power Shuttle Power Shuttle Power Shuttle
Emissions Standard 5 5 5
Engine Gross Power (ECE-R120) HP 73.1 (54.5) 66.4 (49.5) 73.1 (54.5)
Rated revolution rpm 2600 2600 2600
No.of cylinders 4 4 4
Total displacement cc 2435 2435 2435
Turbo Charge Yes Yes Yes

Capacity

Capacity
Fuel tank ℓ 100 100 100

PTO

PTO
Maximum PTO Power HP 63.5 58.4 63.5
Rear PTO Power HP 60.9 54.9 60.9
Rear PTO Effeciency % 83 80.7 83
Rear PTO Speed rpm 2500 / 1800 2501 / 1800 2502 / 1800

Hydraulic

Hydraulic
3 Point Lift Control Type Electronic Control Electronic Control Electronic Control
Total hydraulic flow lpm 46.8 46.8 46.8
3-point hitch type Cat 2 Cat 2 Cat 2
@lift point (Through the full range) kg.f 2928 2928 2928
@610mm point (Through the full range) kg.f 2253 2253 2253

Max. Trailer loading weight kg.f

Max. Trailer loading weight kg.f
No.of standard remote valves (Front/Rear) 2 (Rear) 2 (Rear) 2 (Rear)

Drive Train

Drive Train
Main gear shift x range gear shift 4 x 3 x Creep 4 x 3 x Creep 4 x 3 x Creep
No. of speeds 20 x 20 20 x 20 20 x 20
shuttle Type Power Shuttle Power Shuttle Power Shuttle
Steering Hydrostatic Power Steering Hydrostatic Power Steering Hydrostatic Power Steering
Mechanical differential lock Rear Std. Rear Std. Rear Std.

Traveling Speeds

Traveling Speeds
Forward km/h 38.5 38.5 38.5

Other features

Other features
Tilt steering Std. Std. Std.

Dimensions

Dimensions
Overall length (w/o front weight and w/o 3pt hitch) mm 3352 3433 3433
Overall length (w/o front weight and w/3pt hitch) mm 3817 3817 3817
Overall length (w/front weight and w/3pt hitch) mm 4295 4295 4295
Overall height (CAB) mm N/A 2675 2675
Overall height (ROPS) mm 2917 N/A N/A
Overall width (w/AG tire) 1960 (w/ext. fender 2024) 1960 (w/ext. fender 2024) 1960 (w/ext. fender 2024)
Wheel base mm 2170 2170 2170
Ground(Crop) clearance mm 400 400 400
Weight (w/AG tire w/o weight) 2921 3269 3269
Max. permissible weight kg.f 5300 5300 5300

Functional Specifications

Functional Specifications
Creep gear Std. Std. Std.
4WD Std. Std. Std.
Front PTO N/A N/A N/A
Rear PTO Std. Std. Std.
Rear Remote Hydraulic Valve (No. of Valves) 2 2 2
Joystick valve Std. Std. Std.
Air Conditioner N/A Std. Std.
Air suspension seat N/A Opt. Opt.
Telematics Std. Std. Std.
