Sub-Compact Tractor
Overview
Click the button to find out the characteristics
of each point of the products
-

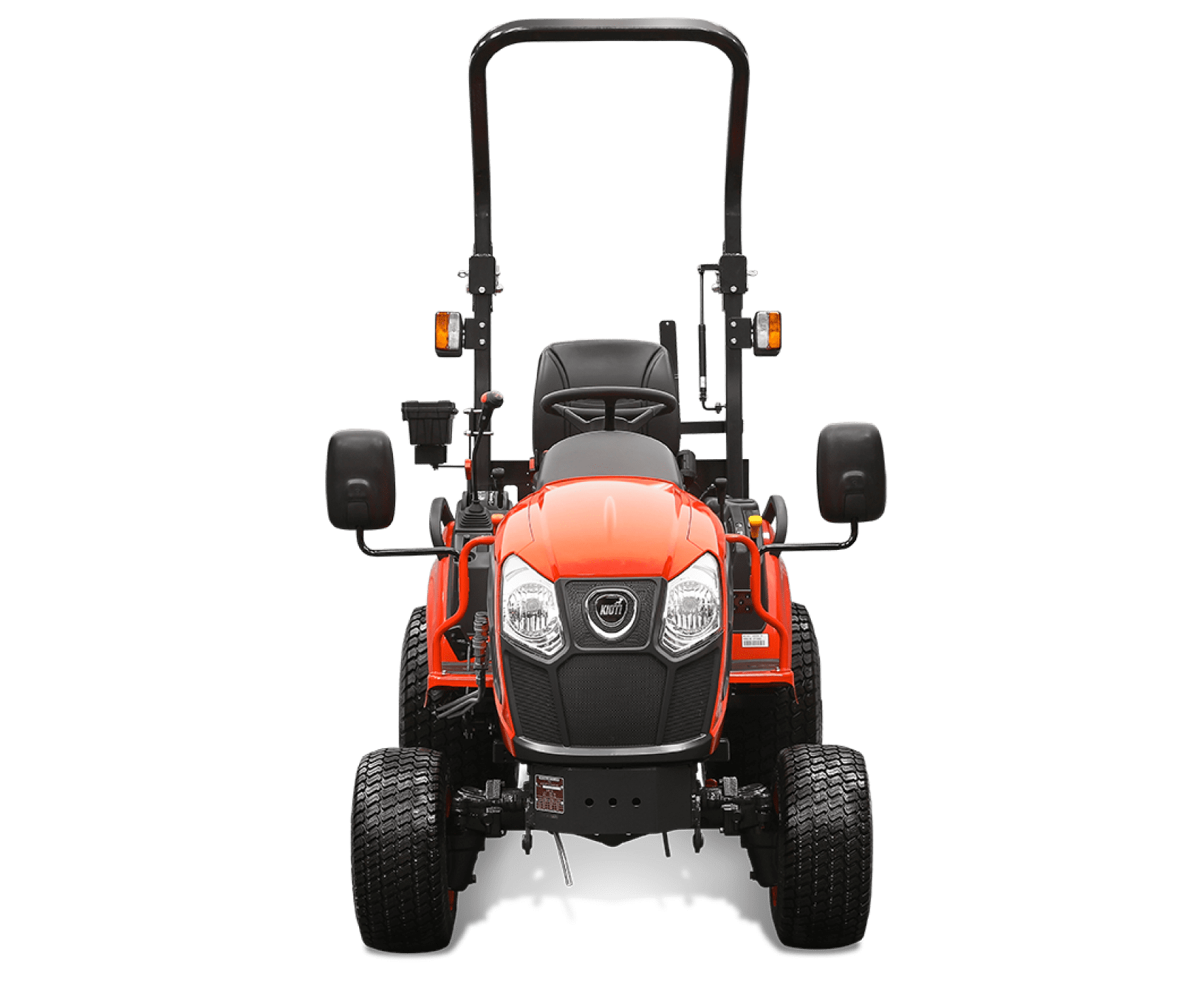

Front
-
Corner
-

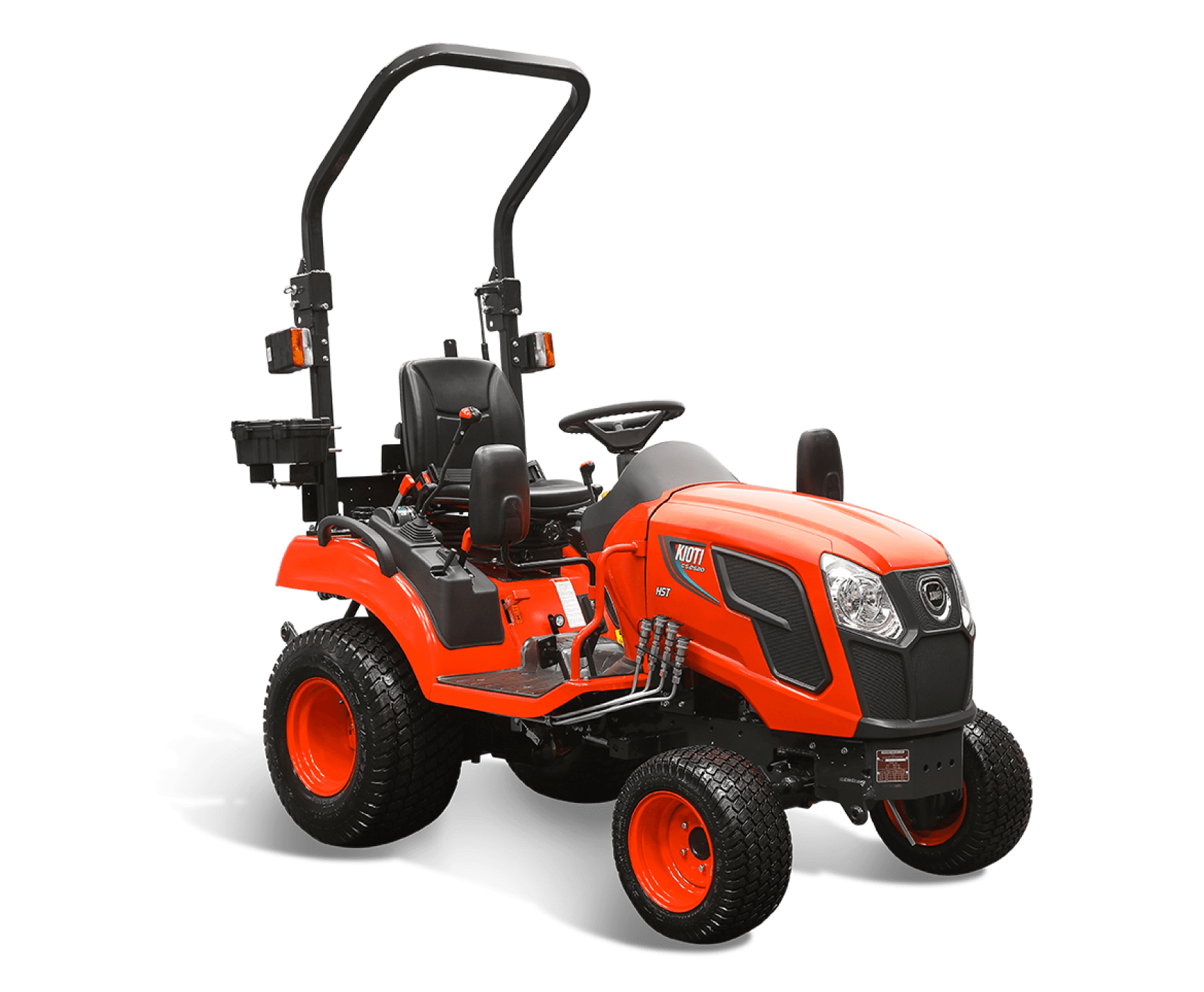

Side
-

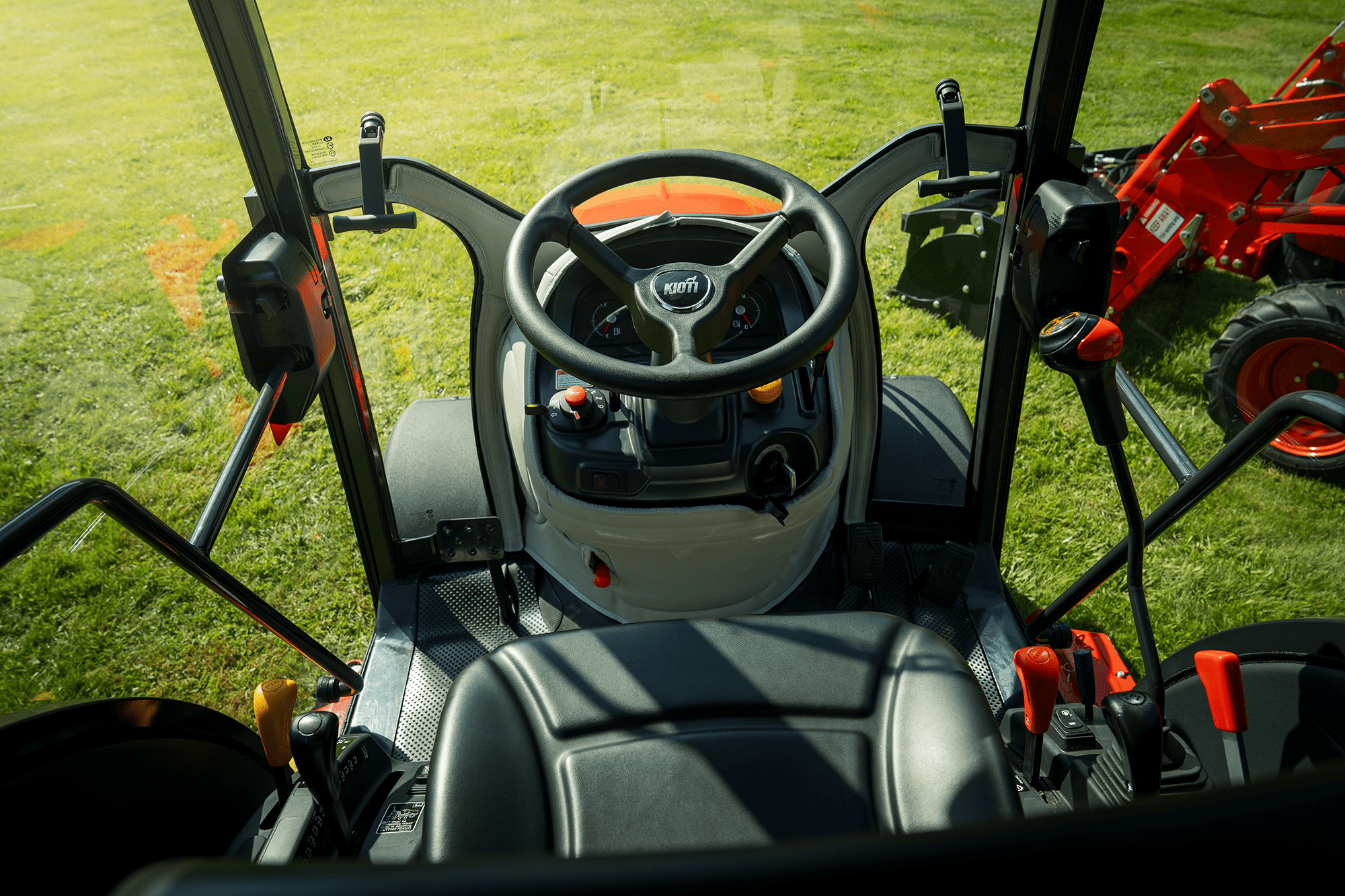

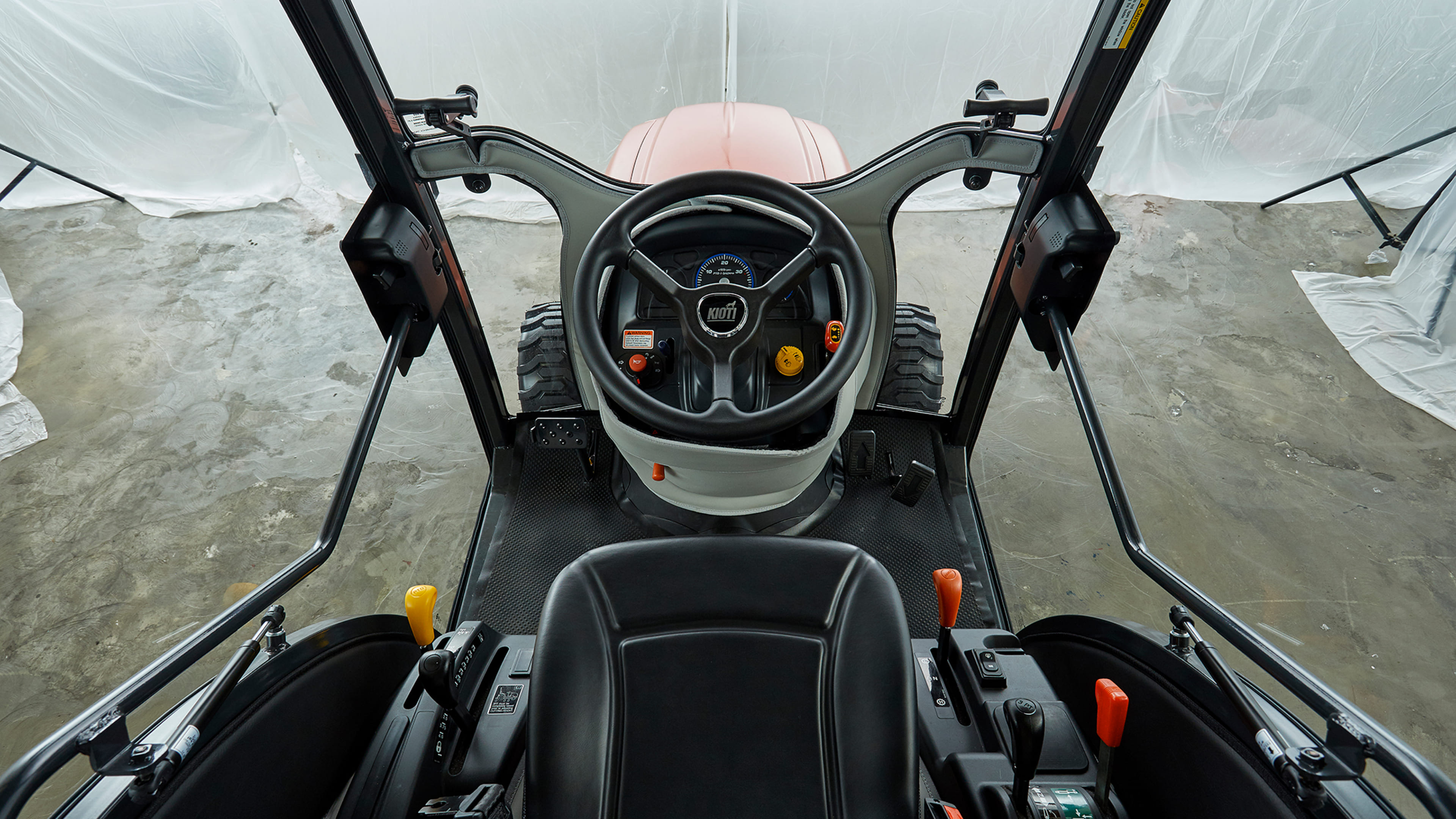

Interior

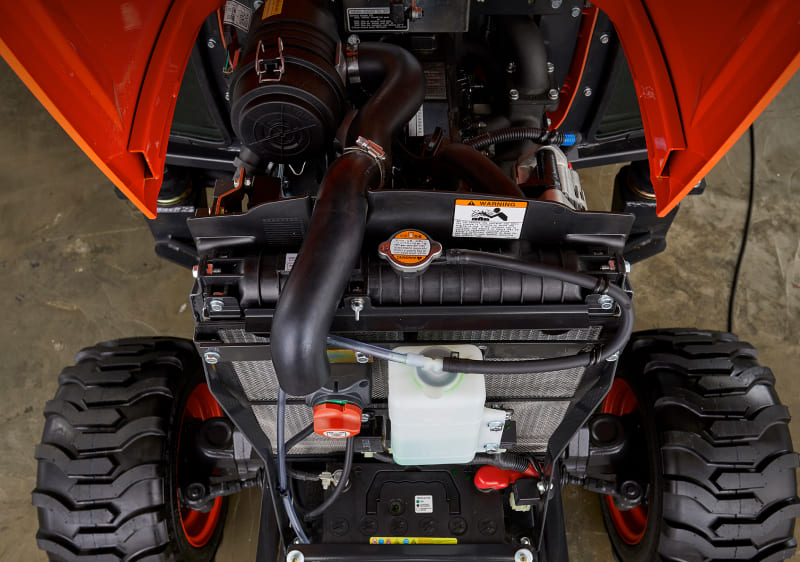

POWERFUL DIESEL ENGINE
The 3-cylinder diesel engine from KIOTI consumes little fuel, but still has plenty of power

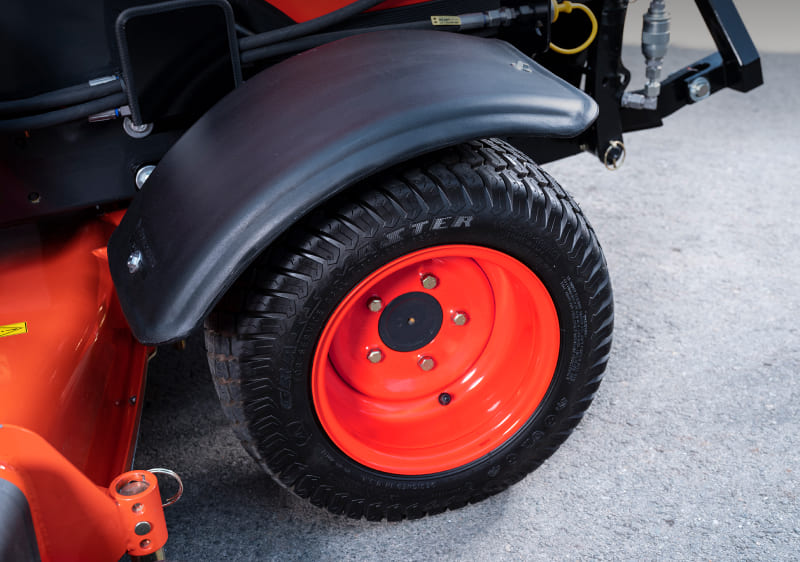

FRONT WHEEL FENDER
The CS2510 and CS2520 models can be equipped with optional front mudguards.

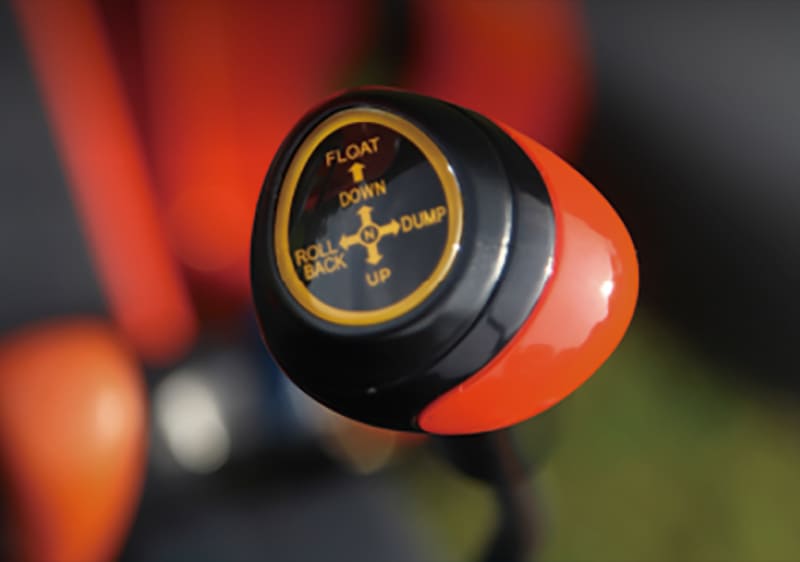

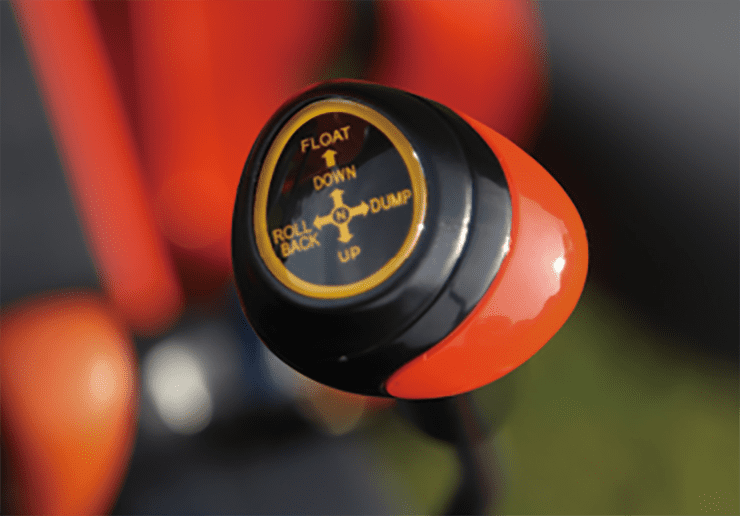

CROSS CONTROL LEVER
The CS2520 comes with a standard cross control lever that is integrated into the machine for optimum ergonomics.

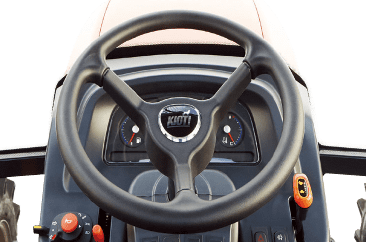

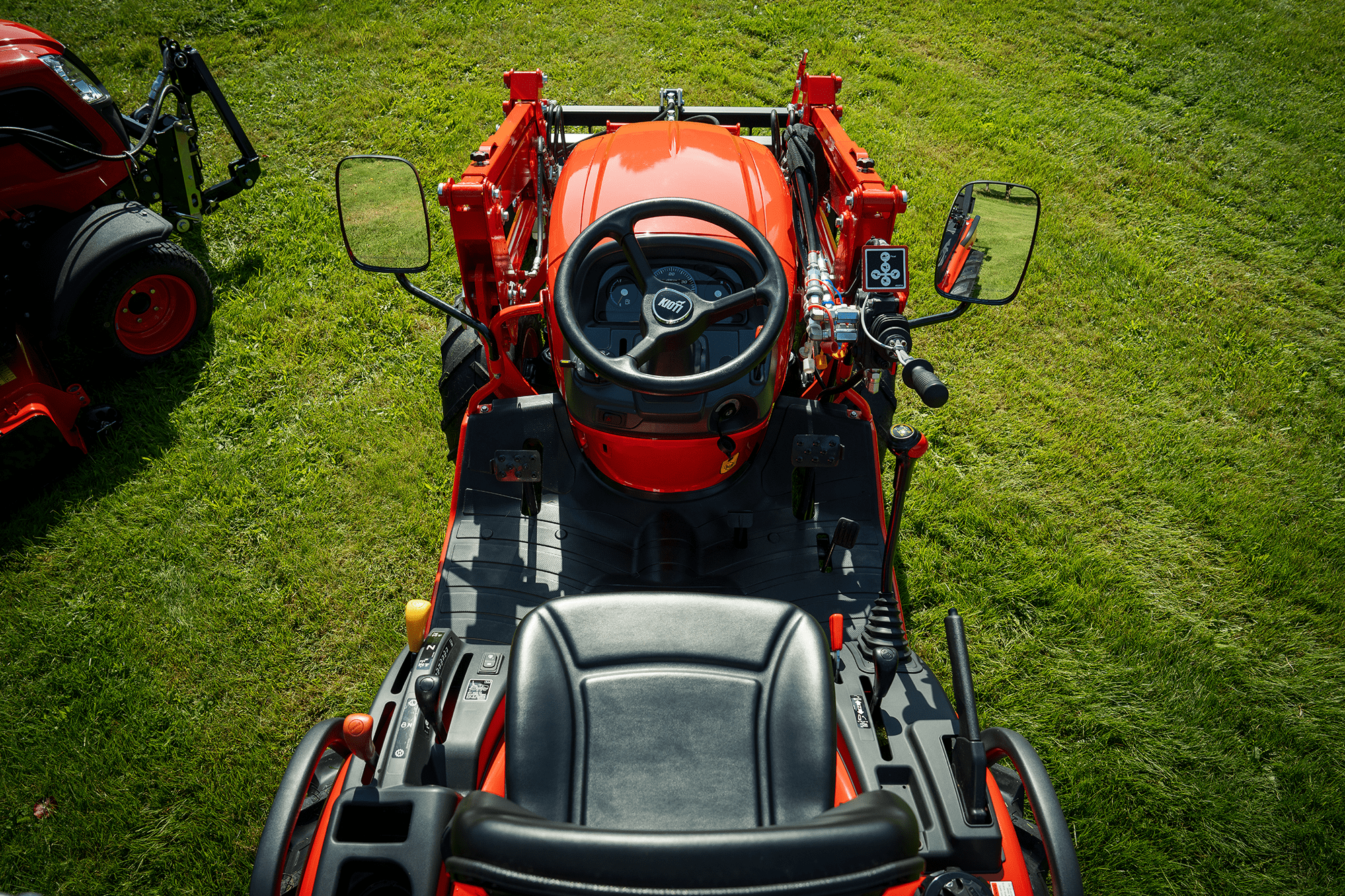

ADJUSTABLE STEERING WHEEL
The CS2520 has a pivoting steering column that allows drivers of all sizes to work comfortably.
Highlight

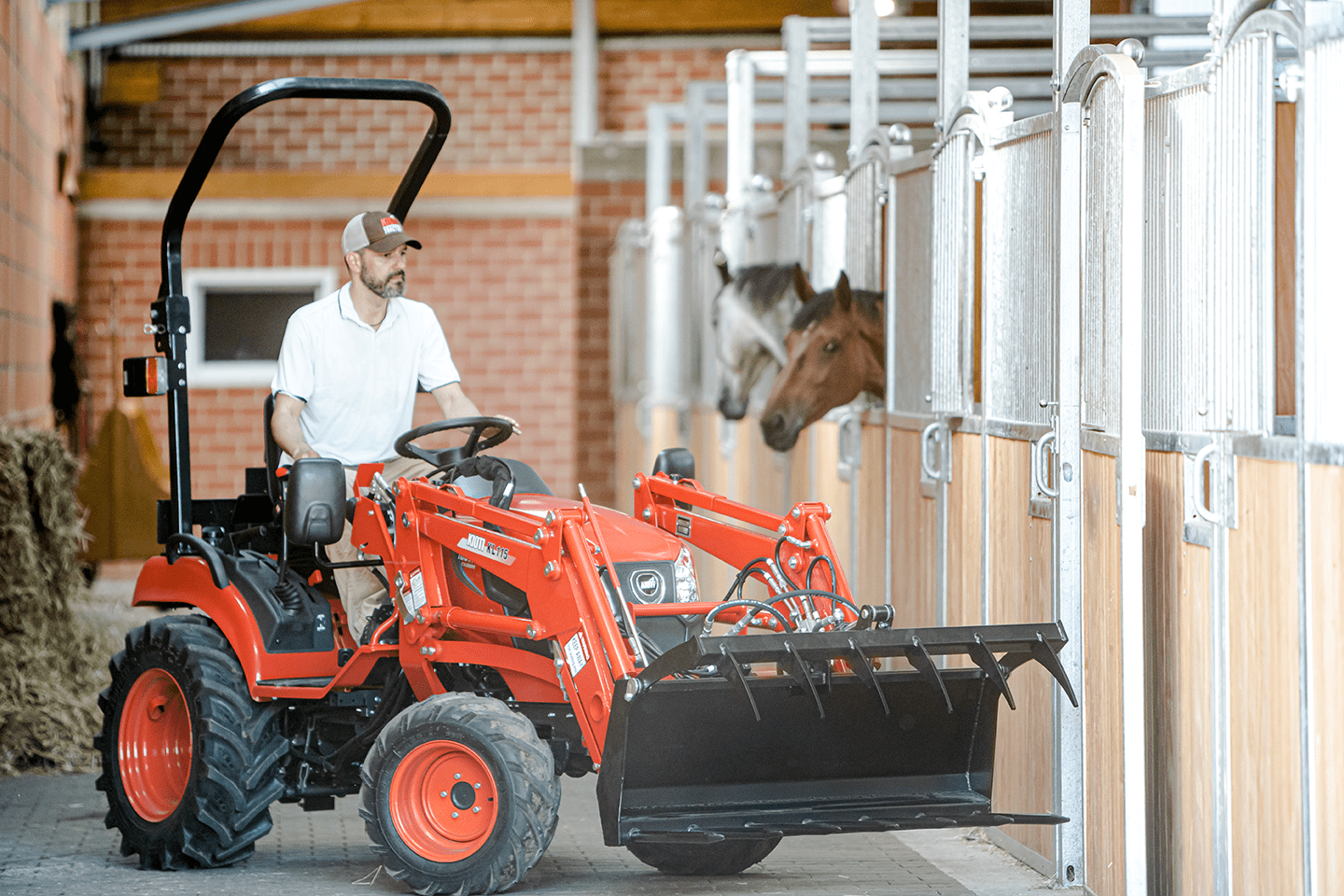

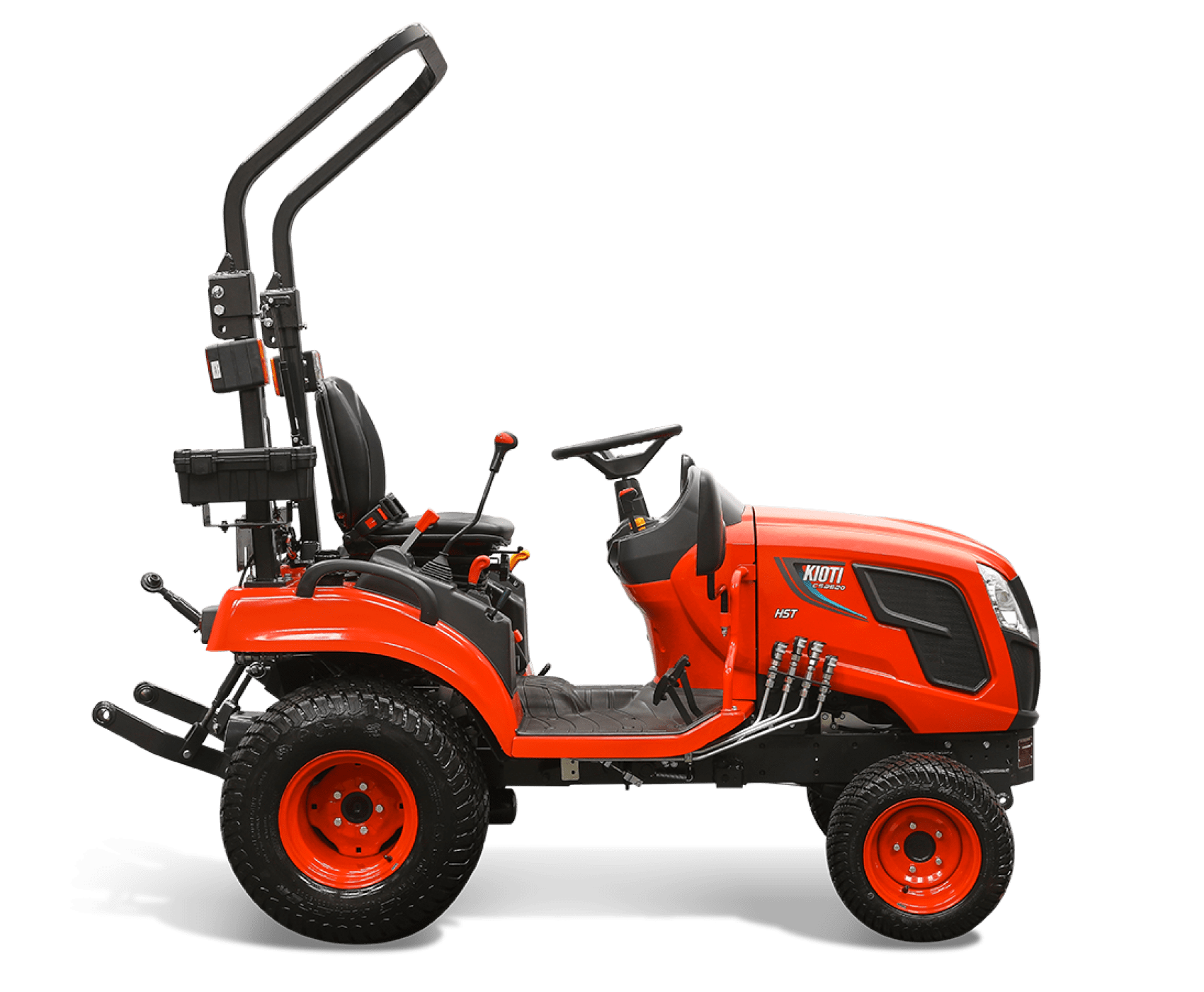

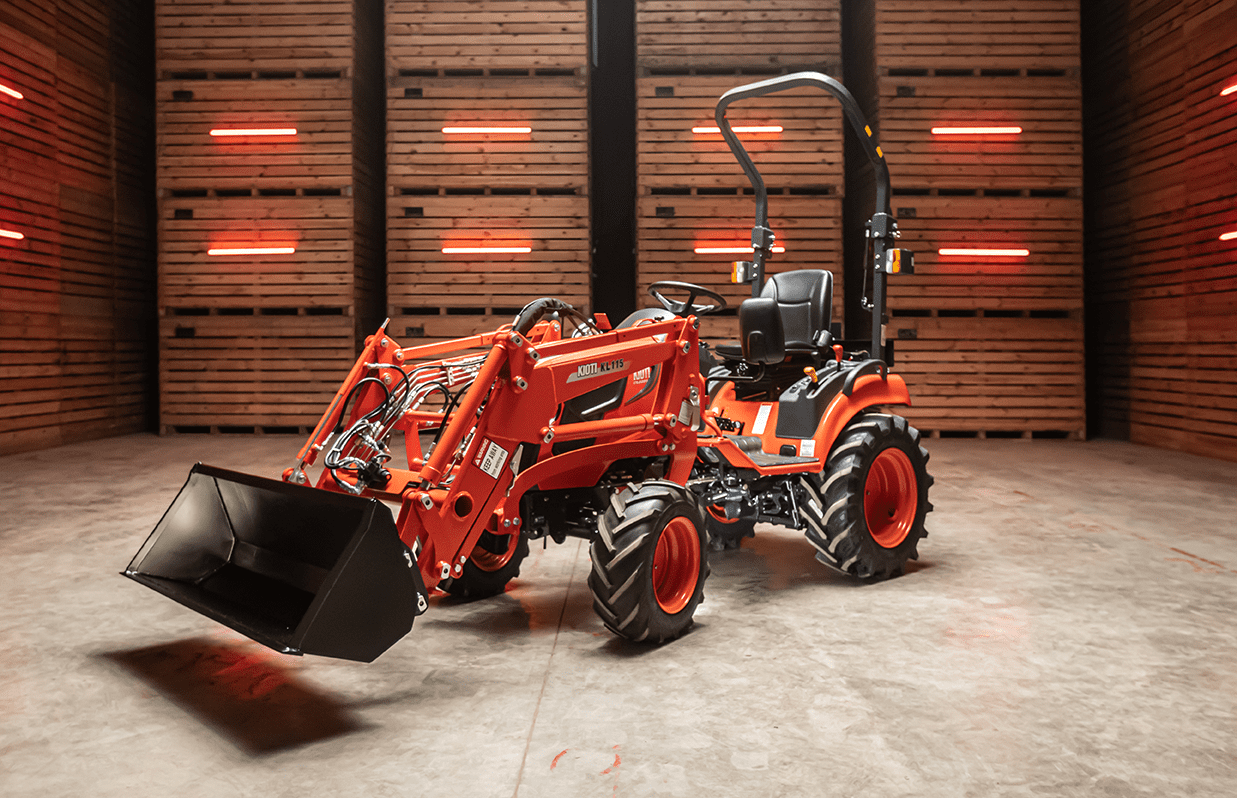

CS Series Sub-Compact Tractors
For homeowners with expansive gardens, and hobby farmers, the KIOTI CS Series sub-compact tractors are the best workhorses for your acreage. These versatile, powerful, and durable sub-compact tractors elevate your capabilities beyond the limitations of lawn and garden tractors, yet retain their compact maneuverability, making them ideal for mowing, tilling, landscaping, grading, leveling, and tackling a wide range of projects around your property. 20 Series models offer additional comfort and convenience features: tilt steering wheel, loader joystick on the fender, cruise control, metal floorboard with rubber mat, and phone charger.
The Perfect Workhorse for Properties up to 5 Acres
-

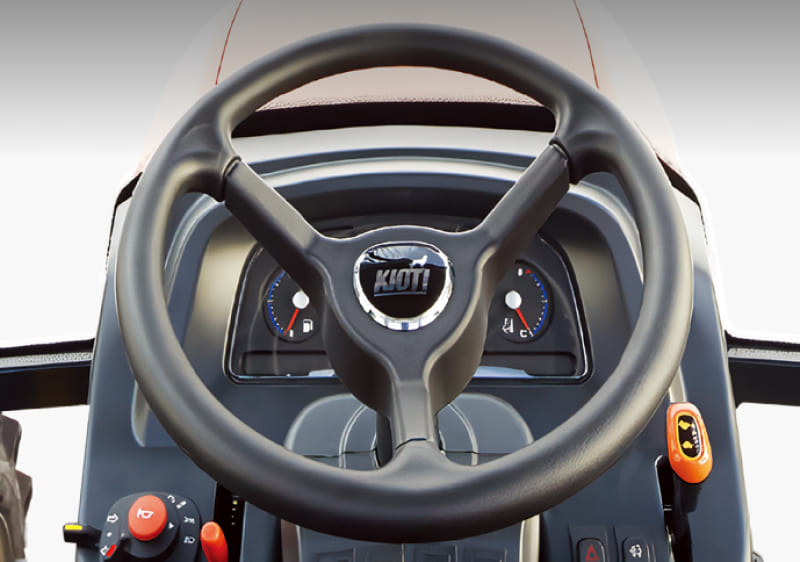

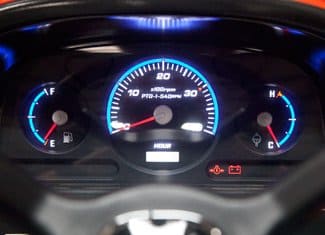

ILLUMINATED GAUGES
Even the compact tractors in the CS Series can boast premium features in their class with their easy-to-read, illuminated dash boards.
-

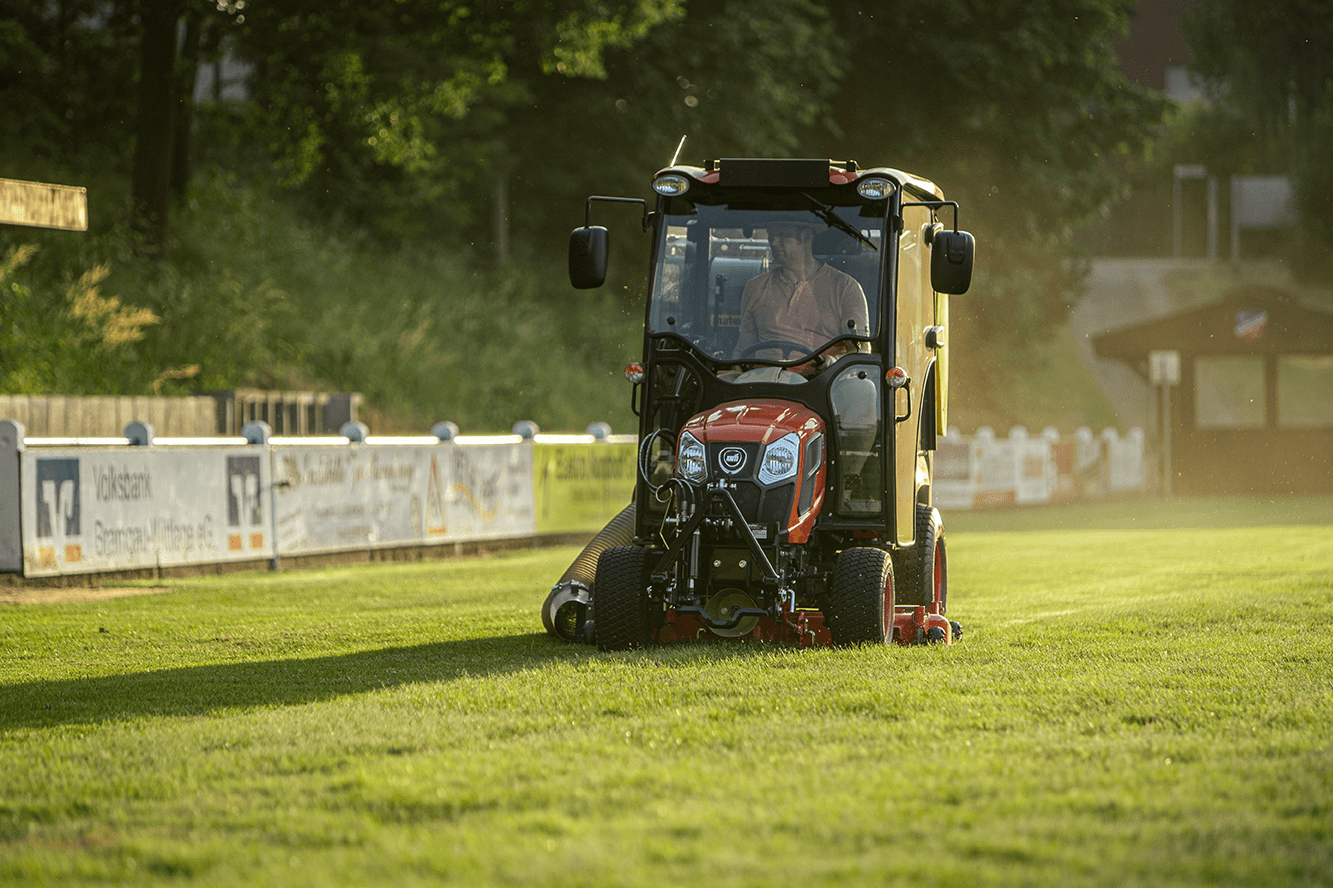

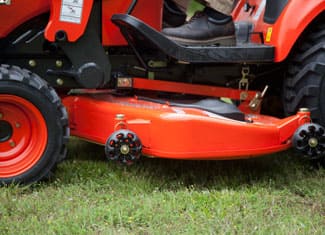

INTERMEDIATE AXLE MOWERS
A 1.37 m and a 1.52 m wide intermediate axle mower are available for all CS models. More information on the mowers can be found at the end of the brochure.
-

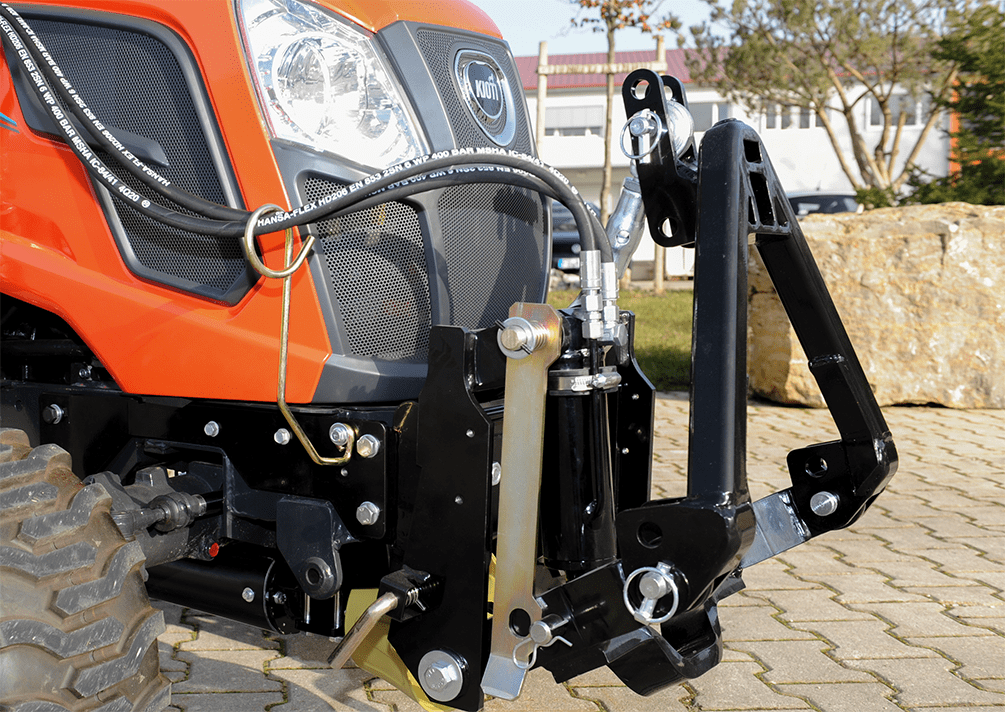

FRONT PTO (MATEV)
The CS2520 can be equipped with a removable front power lift and a front PTO (through-drive from center PTO).
-

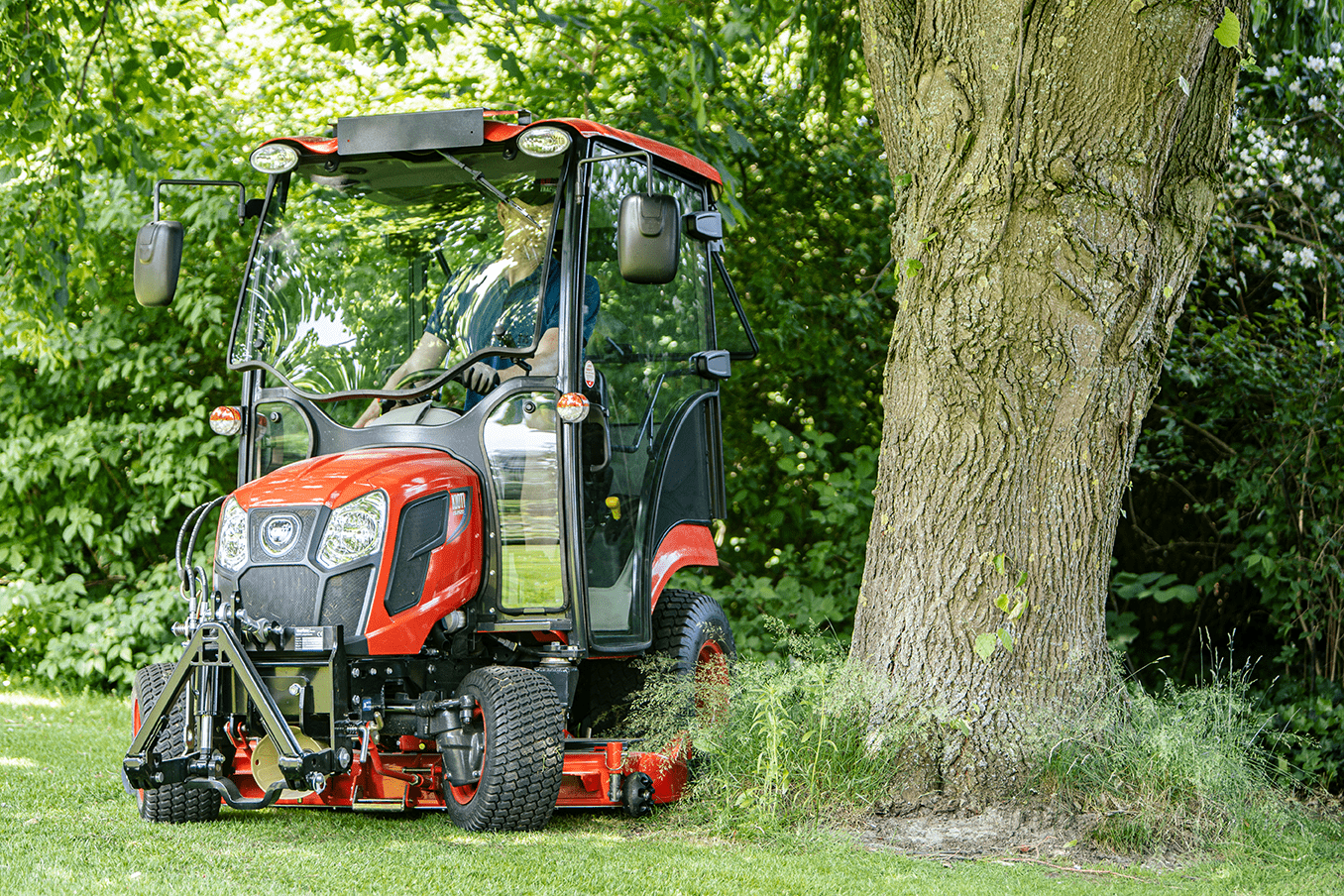

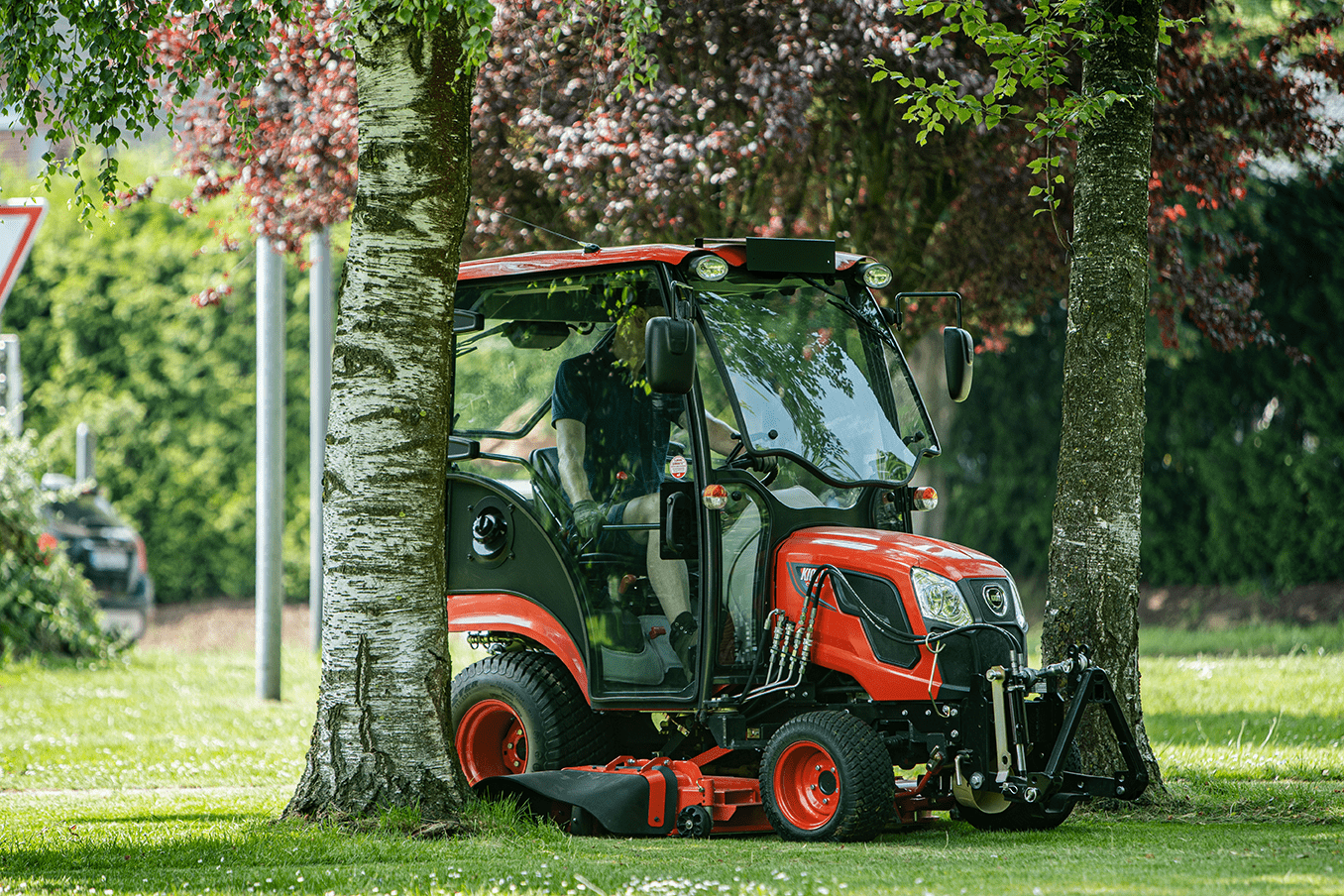

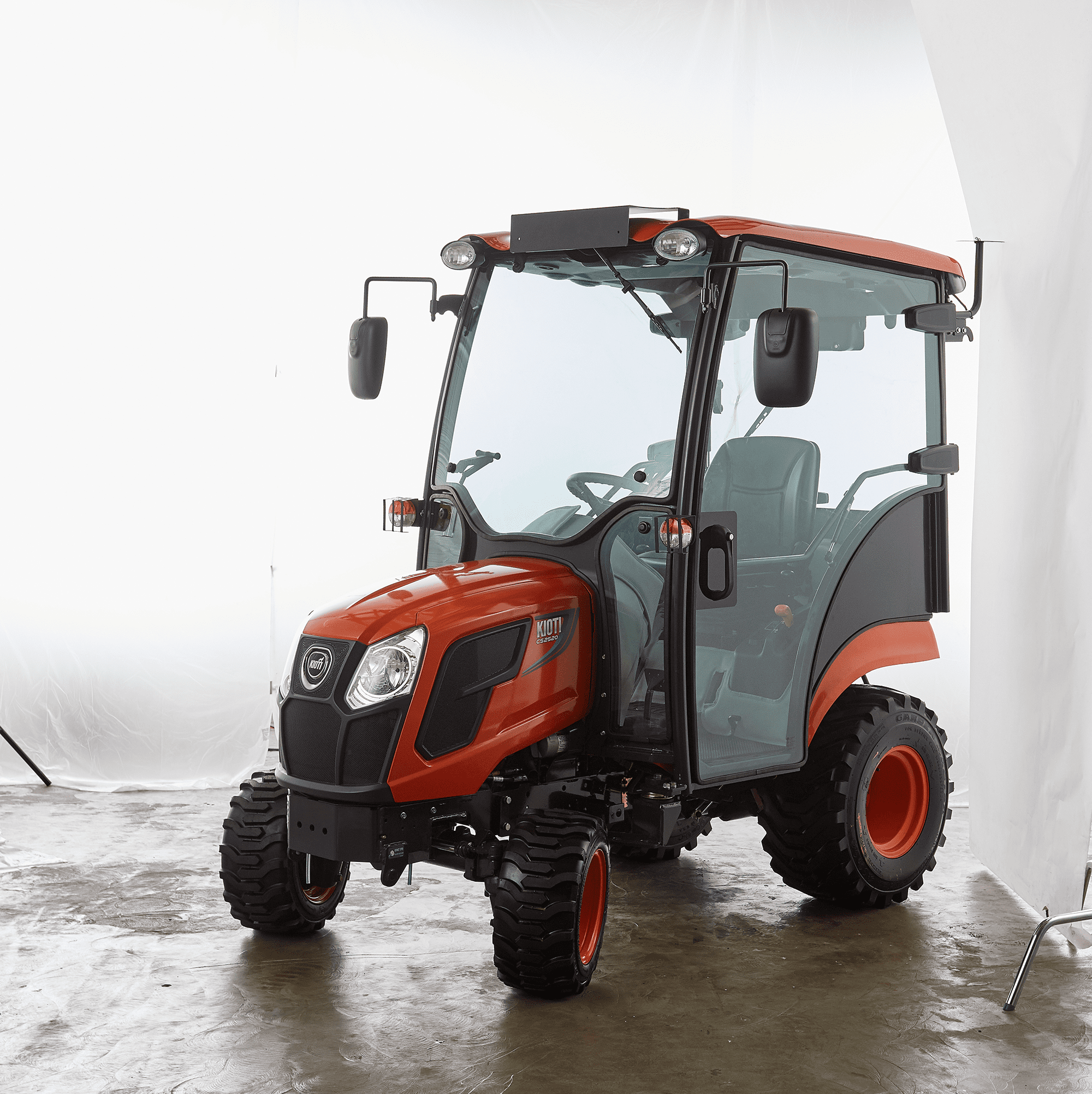

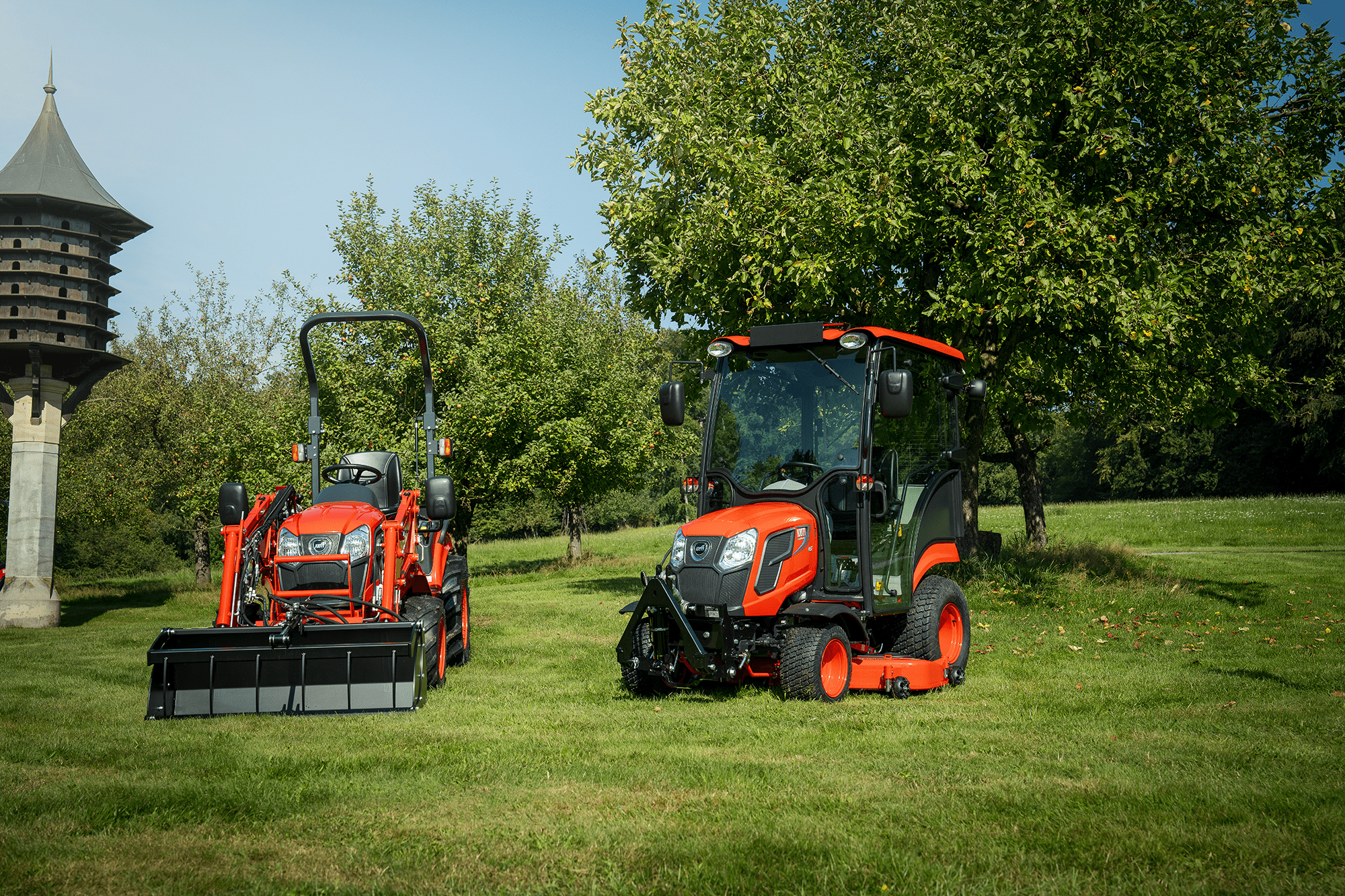

POST-TREATMENT CAB (KIOTI)
A new KIOTI 4-post cab with ex cellent all-round visibility is available as an option for the CS2520.
-

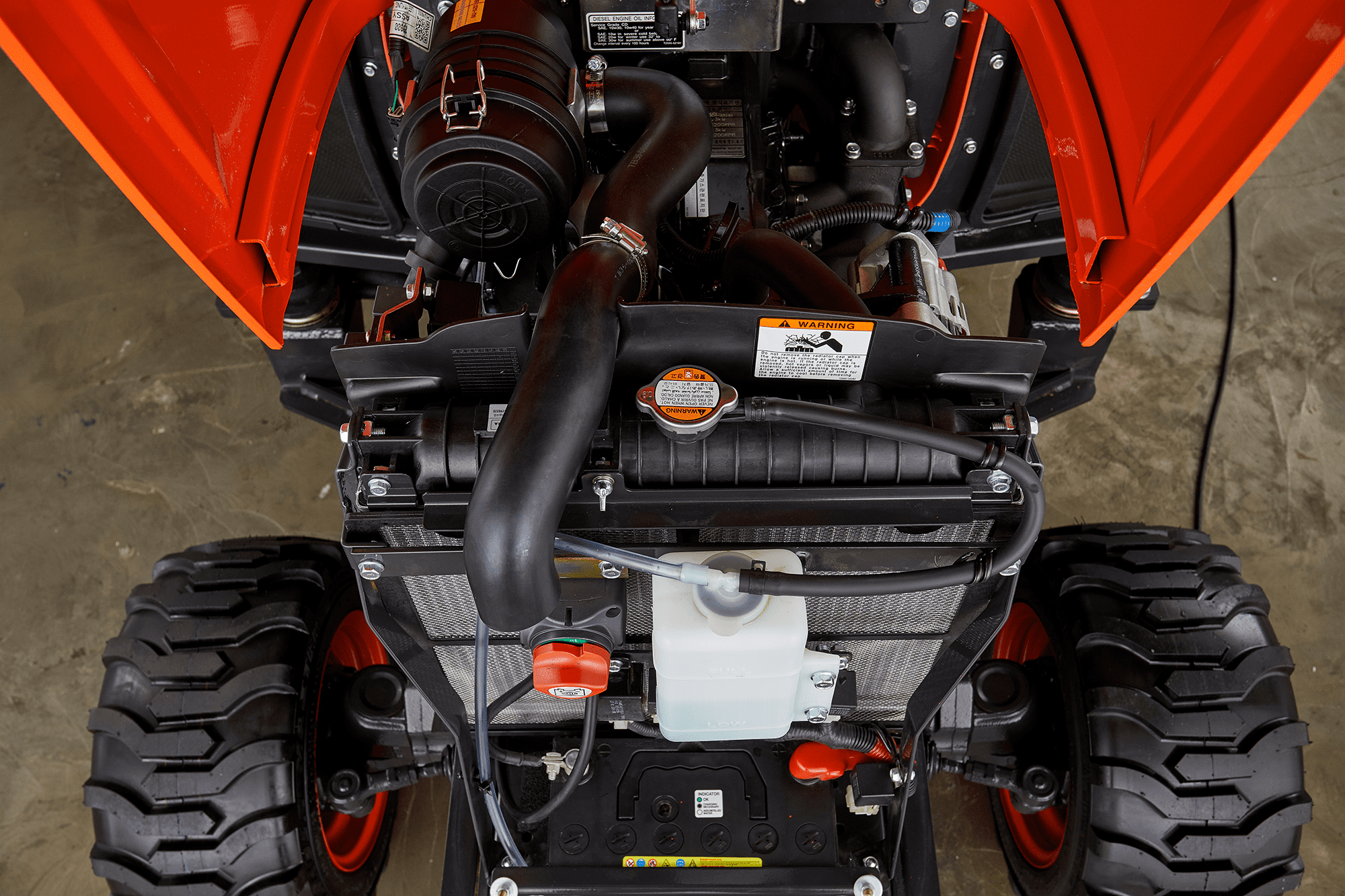

POWERFUL DIESEL ENGINE
The 3-cylinder diesel engine from KIOTI consumes little fuel, but still has plenty of power.
-

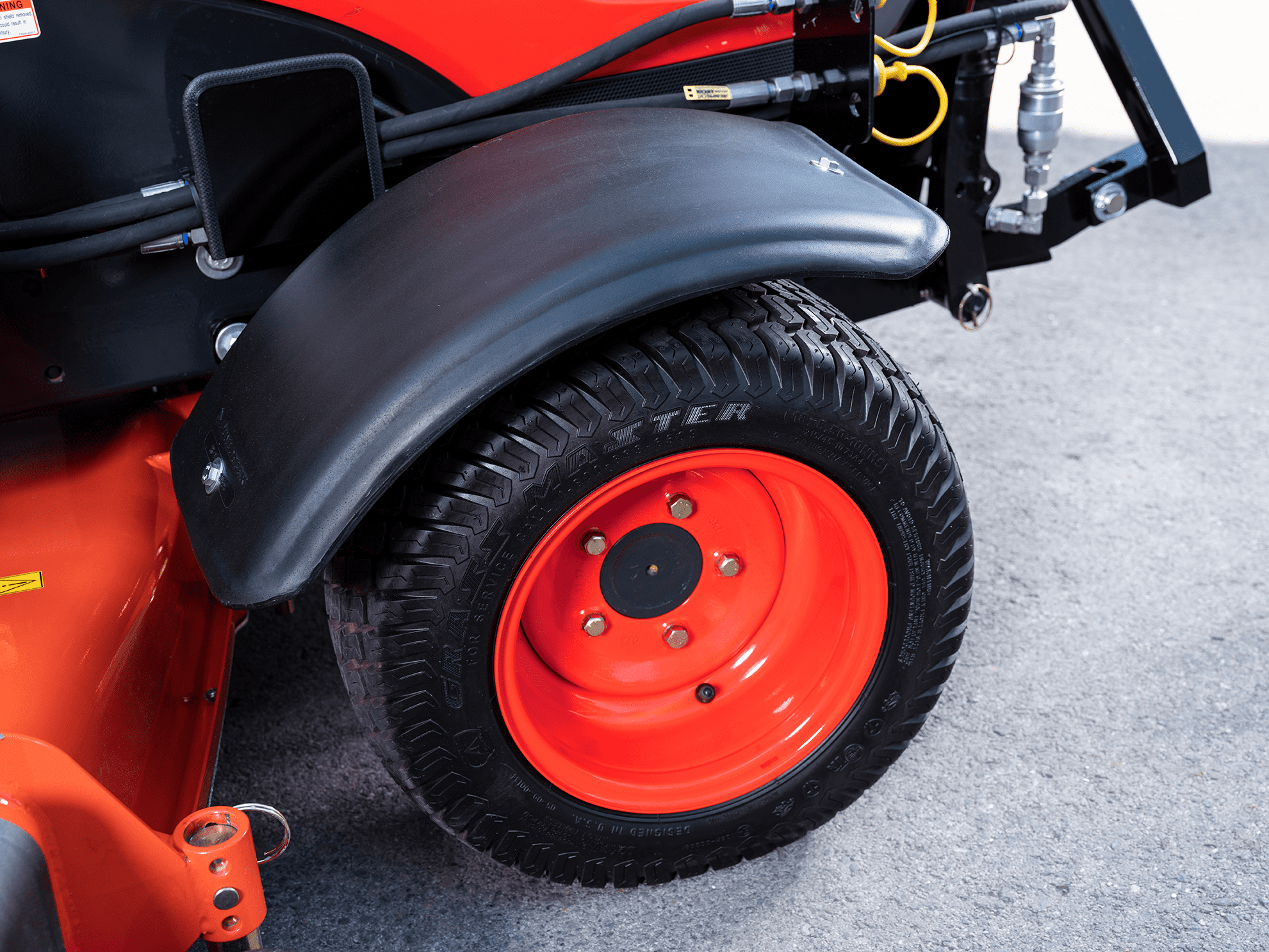

FRONT WHEEL FENDER
The CS2510 and CS2520 models can be equipped with optional front mudguards.
-
ADJUSTABLE STEERING WHEEL
The CS2520 has a pivoting steering column that allows drivers of all sizes to work comfortably.
-
CROSS CONTROL LEVER
The CS2520 comes with a stand ard cross control lever that is integrated into the machine for optimum ergonomics.
-

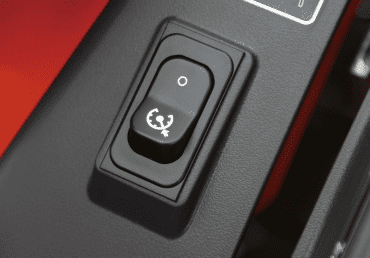

TEMPOMAT
The electronically switchable cruise control is an option on HST models and allows the driving speed to be fixed at the touch of a button.
-

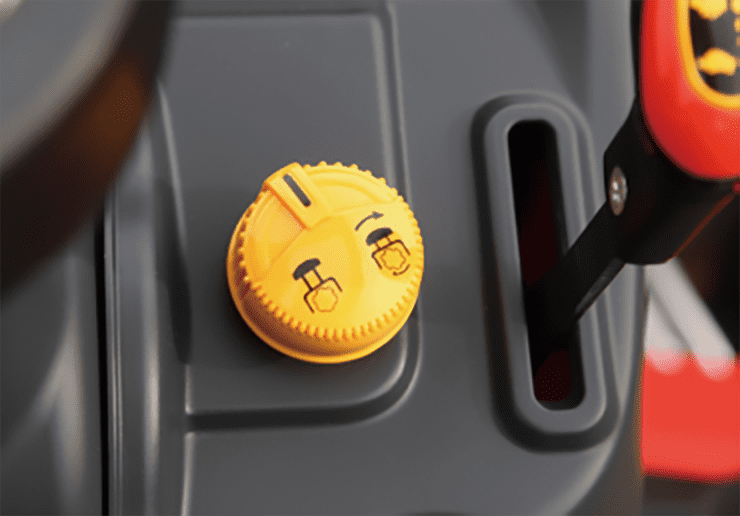

INDEPENDENT PTO CLUTCH
The independent PTO clutch on the premium CS2520 model makes it easy to engage the PTO.
Don't take our word for it.
Read for yourself what others are saying about their KIOTI.
We were looking for a compact tractor for winter service and maintenance of our haulage company’s depot. The CS2510 impressed us with its versatility and high quality. Equipped with a snow blade and a salt spreader, the machine was able to prove its capabilities straight away. In winter, we have to ensure that the trucks can maneuver easily in our 10,000 square meter yard. With the help of the small KIOTI tractor, we were able to ensure that operations could be carried out quickly and easily. The high-quality cab is a blessing, especially in wintry temperatures and uncomfortable weather. A big plus: we can also use the machine easily in summer. Equipped with a front brush, we carried out a basic cleaning of the yard and were more than satisfied with the result. The maneuverability, simple operation and robust design make the CS2510 the perfect addition to our business.
Wilfried Brodhage, Spedition Windels, BremenGallery
Specifications
- Model
Engine
| Manufacturer | Daedong | Daedong | Daedong | Daedong | Daedong | Daedong |
|---|---|---|---|---|---|---|
| Model | 3C100LWH-E2 | 3C100LWH-E2 | 3C100LWM-E1 | 3C100LWM-E1 | 3C100LWM-E2 | 3C100LWM-E1 |
| Engine Gross Power HP (kw) | - | - | - | - | - | - |
| Engine Gross Power (97/68EC) HP (kw) | - | - | - | - | - | - |
| Engine Gross Power (ECE-R120) HP (kw) | 24.5 | 24.5 | 21 | 24.5 | 21 | 24.5 |
| Engine Base Power HP (kw) | - | - | - | - | - | - |
| Engine Boost Power HP (kw) | - | - | - | - | - | - |
| Rated revolution (RPM) | 3200 | 3200 | 3200 | 3200 | 3200 | 3200 |
| Max. Torque (Nm) | - | - | - | - | - | - |
| Torque Reserve Percentage (%) | - | - | - | - | - | - |
| No. of cylinders | 3 | 3 | 3 | 3 | 3 | 3 |
| Total Displace cc (cu) | 1007 | 1007 | 1007 | 1007 | 1007 | 1007 |
Capacity
| Fuel tank (ℓ) | 25.5 | 25.5 | 23.5 | 23.5 | 23.5 | 23.5 |
|---|---|---|---|---|---|---|
| Urea tank (ℓ) | - | - | - | - | - | - |
PTO
| Rated PTO Power/RPM (HP) | - | - | - | - | - | - |
|---|---|---|---|---|---|---|
| Maximum PTO Power (HP) | - | - | - | - | - | - |
| Maximum PTO Power (HP/RPM) | 18.5 | 18.5 | 17.4 | 19.5 | 17.4 | 19.5 |
| Rear PTO | - | - | - | - | - | - |
| Rear PTO Type | Independent | Independent | Transmission | Transmission | Transmission | Transmission |
| Rear PTO (RPM) | 540 | 540 | 540 | 540 | 540 | 540 |
| Mid PTO (RPM) | 2200 | 2200 | 2200 | 2200 | N/A | N/A |
| Ground PTO | - | - | - | - | - | - |
Hydraulic
| 3 Point Lift Control Type | Position | Inching | Inching | Inching | Inching | Inching |
|---|---|---|---|---|---|---|
| Implement Pump (ℓ/min) | - | - | - | - | - | - |
| Power Steering Pump (ℓ/min) | - | - | - | - | - | - |
| Total hydraulic flow (ℓ/min) | 25.7 | 26.4 | 25.7 | 25.7 | 25.7 | 25.7 |
| 3-point hitch type | Category 1 | Category 1 | Category 1 | Category 1 | Category 1 | Category 1 |
| Lower Link type | Ball | Ball | Ball | Ball | Ball | Ball |
| at lift point (Max.) (kg.f) | - | - | - | - | - | - |
| at lift point (Horizontal position) (kg.f) | - | - | - | - | - | - |
| Lift capacity at lift point | - | - | - | - | - | - |
| Lift capacity at 24 in.behind lift point | - | - | - | - | - | - |
| at 610mm point (Through the full range) (kg.f) | - | - | - | - | - | - |
| No. of standard remote valves (Front/Rear) | - | - | - | - | - | - |
| No. of Std. remote valve's ports (Rear) | STD(2port) | STD. | Option(2ports) | STD. | Option(2ports) | STD. |
Drive Train
| Transmission | HST | HST | MECH | MECH | MECH | MECH |
|---|---|---|---|---|---|---|
| No. of speeds | - | - | 6F X 2R | 6F X 2R | 6F X 2R | 6F X 2R |
| Mechanical Differential Lock | - | - | - | - | - | - |
| Shuttle Type | - | - | Synchro-mesh | Synchro-mesh | Synchro-mesh | Synchro-mesh |
| Hi-Low | - | - | - | - | - | - |
| Brake Type | Wet disc type | Wet disc type | Wet disc type | Wet disc type | Wet disc type | Wet disc type |
| Main Brake Type | - | - | - | - | - | - |
| Parking Brake Type | - | - | - | - | - | - |
| Main Clutch Type | - | - | Dry single Plate | Dry single Plate | Dry single Plate | Dry single Plate |
| Front Wheel Drive System | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical |
| PTO Type (PTO RPM) | - | - | - | - | - | - |
Traveling Speeds
| Forward (km/h) | 0-16.5 | 0 ~ 15.4 | 1.13 ~ 19.32 | 1.13 ~ 19.32 | 1.13 ~ 19.32 | 1.13 ~ 19.32 |
|---|---|---|---|---|---|---|
| Reverse (km/h) | 0-11.2 | 0 ~ 10.6 | 1.39 ~ 7.50 | 1.39 ~ 7.50 | 1.39 ~ 7.50 | 1.39 ~ 7.50 |
Dimensions
| Overall length (w/o front weight and w/o 3pt hitch) (mm) | - | - | - | - | - | - |
|---|---|---|---|---|---|---|
| Overall length (w/o front weight and w/3pt hitch) (mm) | - | - | - | - | - | - |
| Overall length (w/weight support and w/3pt hitch) (mm) | - | - | - | - | - | - |
| Overall length (includes 3-pt hitch) (mm) | 2124 | 2124 | 2224 | 2224 | 2224 | 2224 |
| Overall length (without 3-pt hitch) (mm) | 2523 | 2523 | 2623 | 2623 | 2623 | 2623 |
| Overall length (with 3 point & front weight) (mm) | 2800 | 2800 | 2900 | 2900 | 2900 | 2900 |
| Overall length (w/front weight and w/3pt hitch) (mm) | - | - | - | - | - | - |
| Overall width (minimum tread) (mm) | 1168(IND.) | 1168(IND.) | 1070(AG) | 1070(AG) | 1070(AG) | 1070(AG) |
| Overall height (ROPS) (mm) | 2280 | 2280 | 2123(AG) | 2123(AG) | 2123(AG) | 2123(AG) |
| Overall height (CAB) (mm) | - | - | - | - | - | - |
| Wheel base in. (mm) | 1400 | 1400 | 1500 | 1500 | 1500 | 1500 |
| Tread Width (Front) (mm) | - | - | - | - | - | - |
| Tread Width (Rear) (mm) | - | - | - | - | - | - |
| Ground Clearence in. (mm) | 162 | 162 | 190(AG) | 190(AG) | 190(AG) | 190(AG) |
| Turning radius(w/o brake) (mm) | - | - | - | - | - | - |
| Turning radius (w/brake) (mm) | 2540 | 2540 | 2526(AG) | 2526(AG) | 2526(AG) | 2526(AG) |
| Weight with ROPS (kg.f) | 700 | 705 | 710 | 710 | 710 | 710 |
| Weight with Cabin and AG tires (kg.f) | - | - | - | - | - | - |
| Max. Permissible Weight (EEC Standard) (kg.f) | - | - | - | - | - | - |
Tire Size
| AG Tire - Front | - | - | - | - | - | - |
|---|---|---|---|---|---|---|
| AG Tire - Rear | - | - | - | - | - | - |
| Turf Tire - Front | 18x8.5-10 R3 | 18x8.5-10 R3 | 18x8.5-10 R3 | 18x8.5-10 R3 | 18x8.5-10 R3 | 18x8.5-10 R3 |
| Turf Tire - Rear | 26x12.00-12 R3 | 26x12.00-12 R3 | 26x12.00-12 R3 | 26x12.00-12 R3 | 26x12.00-12 R3 | 26x12.00-12 R3 |
| Industrial Tire - Front | 18x8.5-10 R4 | 18x8.5-10 R4 | 18x8.5-10 R4 | 18x8.5-10 R4 | 18x8.5-10 R4 | 18x8.5-10 R4 |
| Industrial Tire - Rear | 26x12.00-12 R4 | 26x12.00-12 R4 | 26x12.00-12 R4 | 26x12.00-12 R4 | 26x12.00-12 R4 | 26x12.00-12 R4 |
| Radial - Front | - | - | - | - | - | - |
| Radial - Rear | - | - | - | - | - | - |
