Overwhelming Power to Lift the World
Overview
Click the button to find out the characteristics
of each point of the products
-

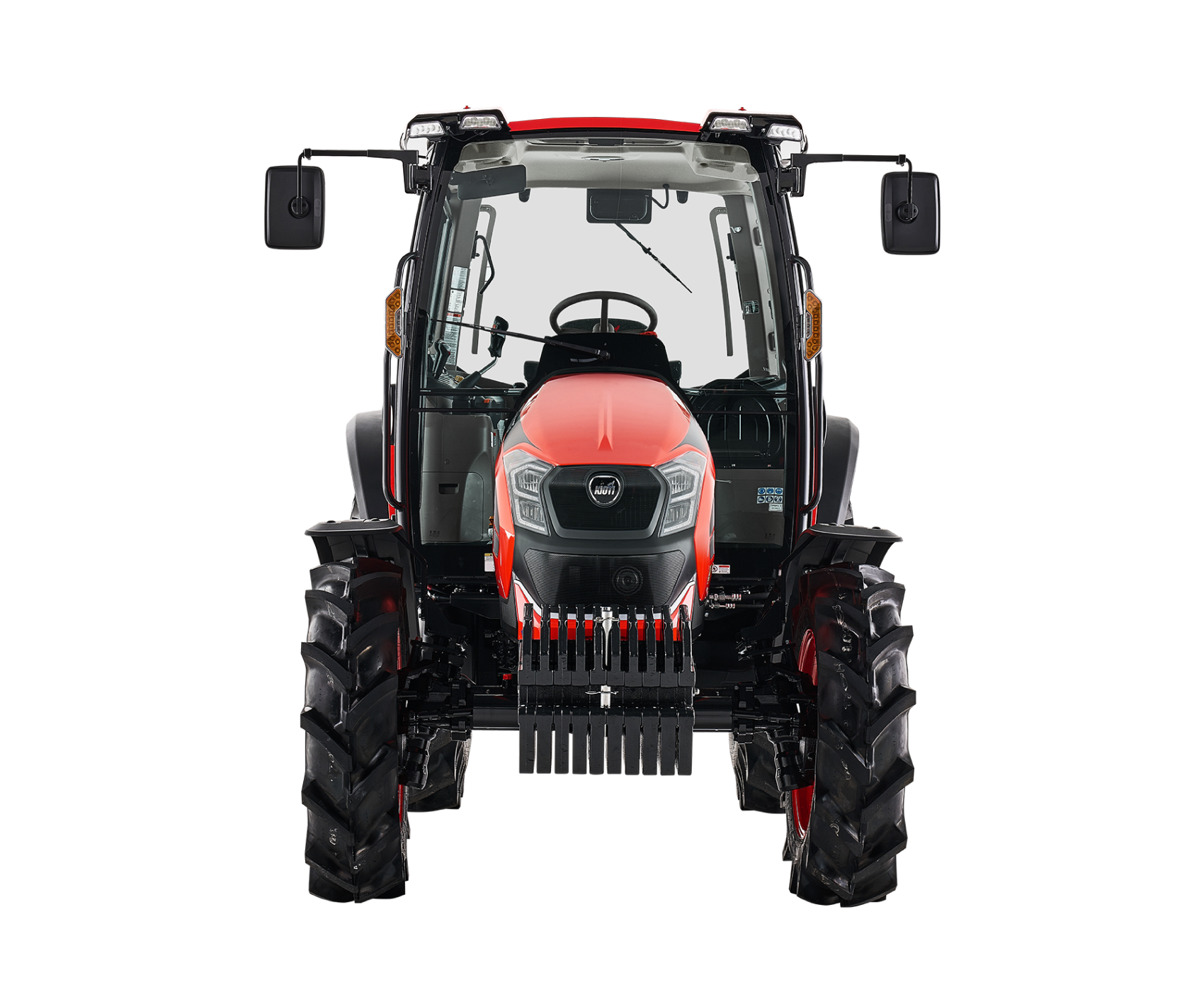

Front
-
Corner
-
Side
-

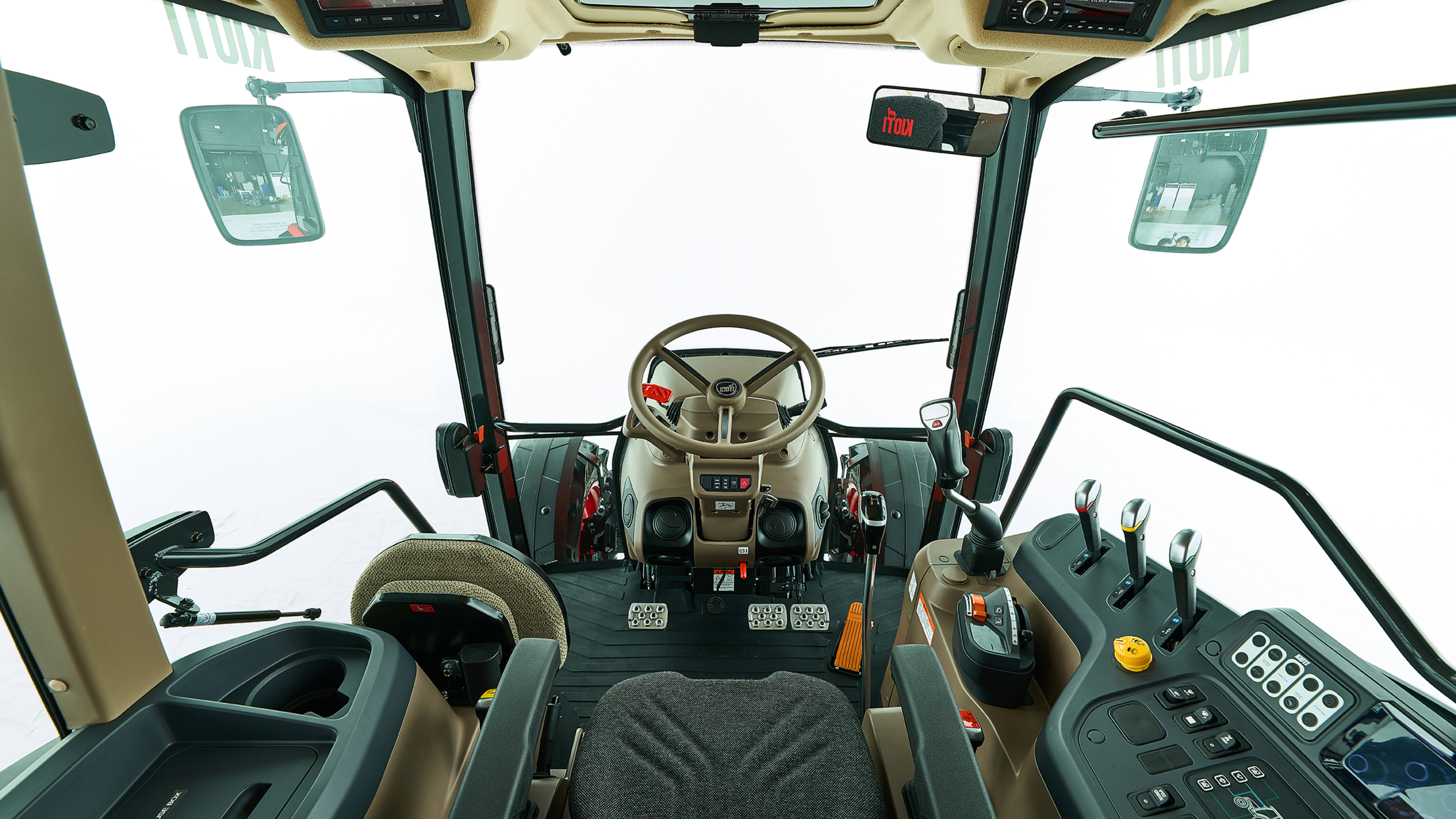

Interior

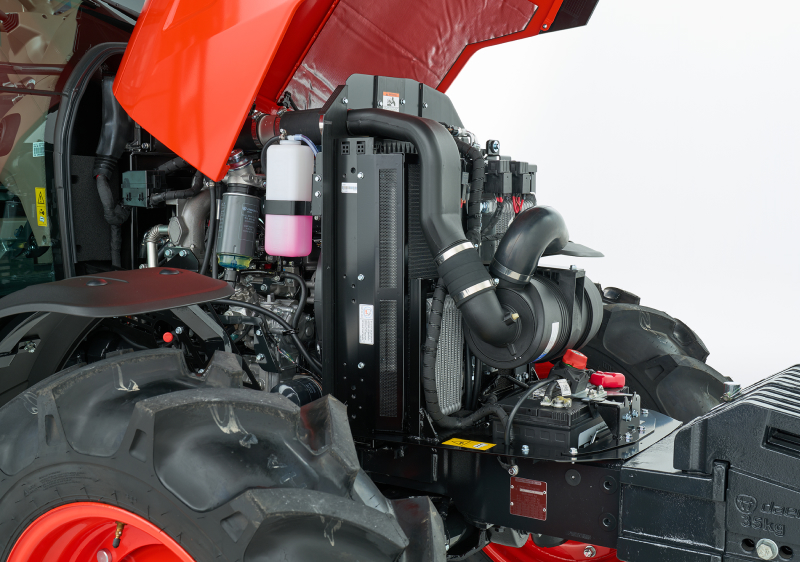

POWERFUL DAEDONG ENGINE
The powerful Daedong engine impresses with great characteristics & low fuel consumption.

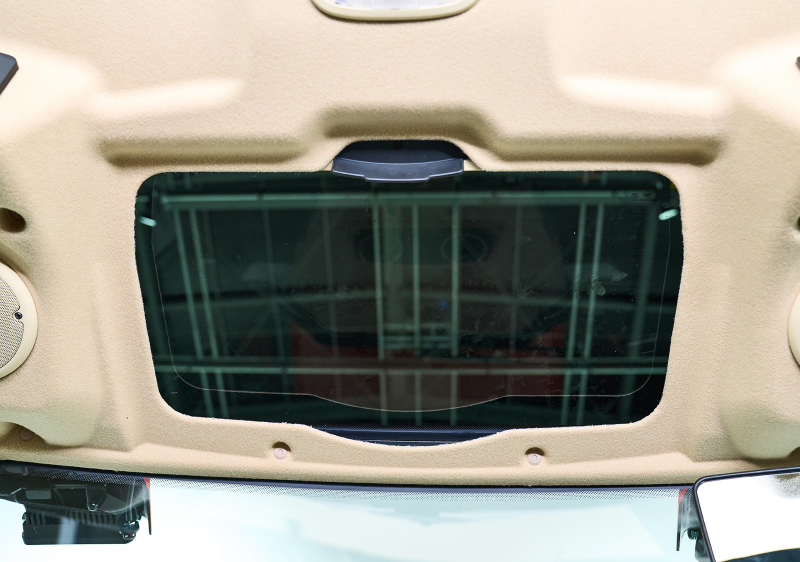

SUNROOF
The sunroof provides a very good view of the raised front loader. It can be darkened, and when opened, provides additional fresh air supply.

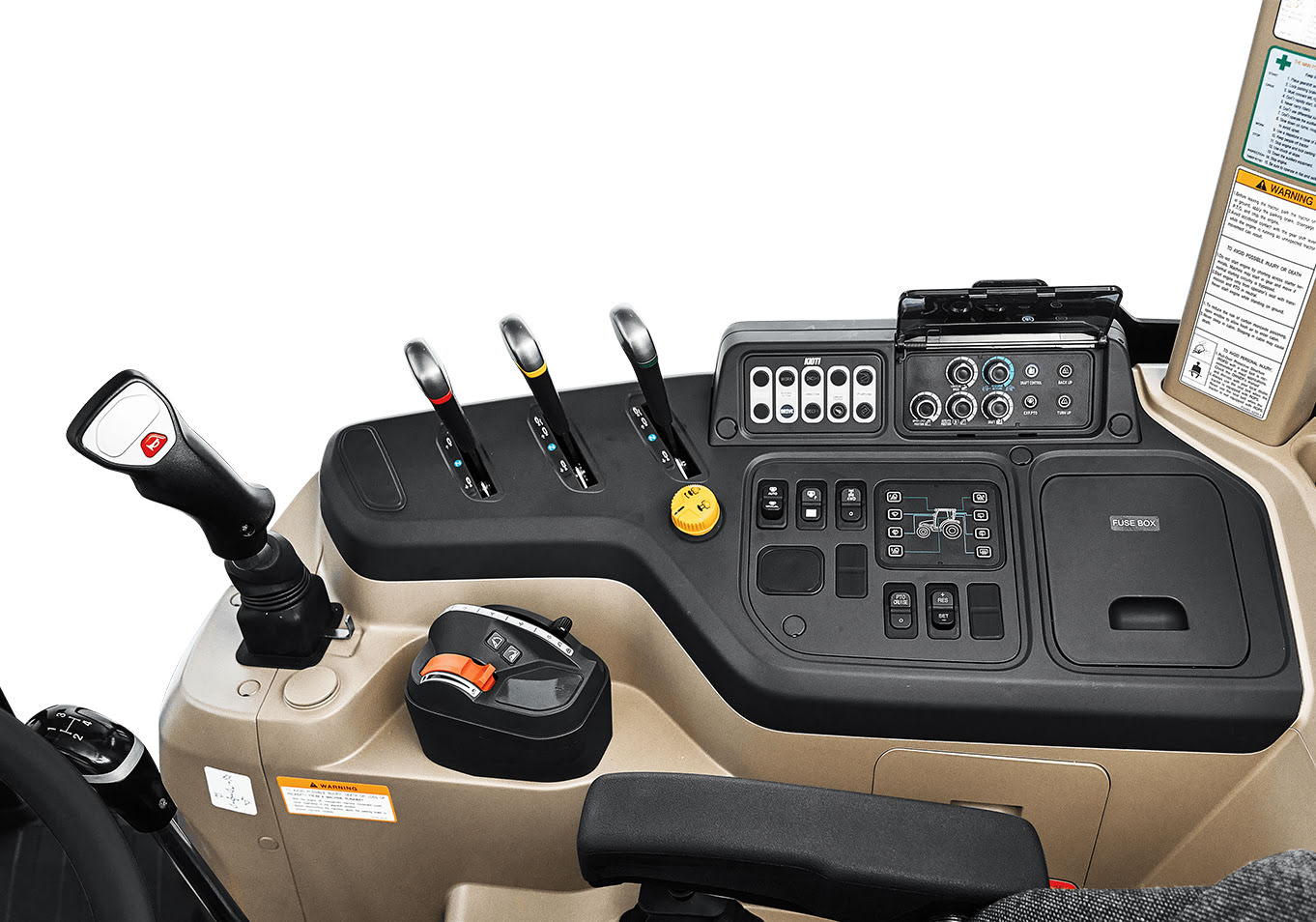

GROUPING OF LEVERS AND SWITCHES
Levers and switches used to conduct similar tasks are grouped for better convenience.
POWER STEERING
Minimizes the effort required to make tight, repetitive turns. The steering wheel tilts with the simple push of lever, allowing easy adjustment to fit the operator's needs.
Highlight

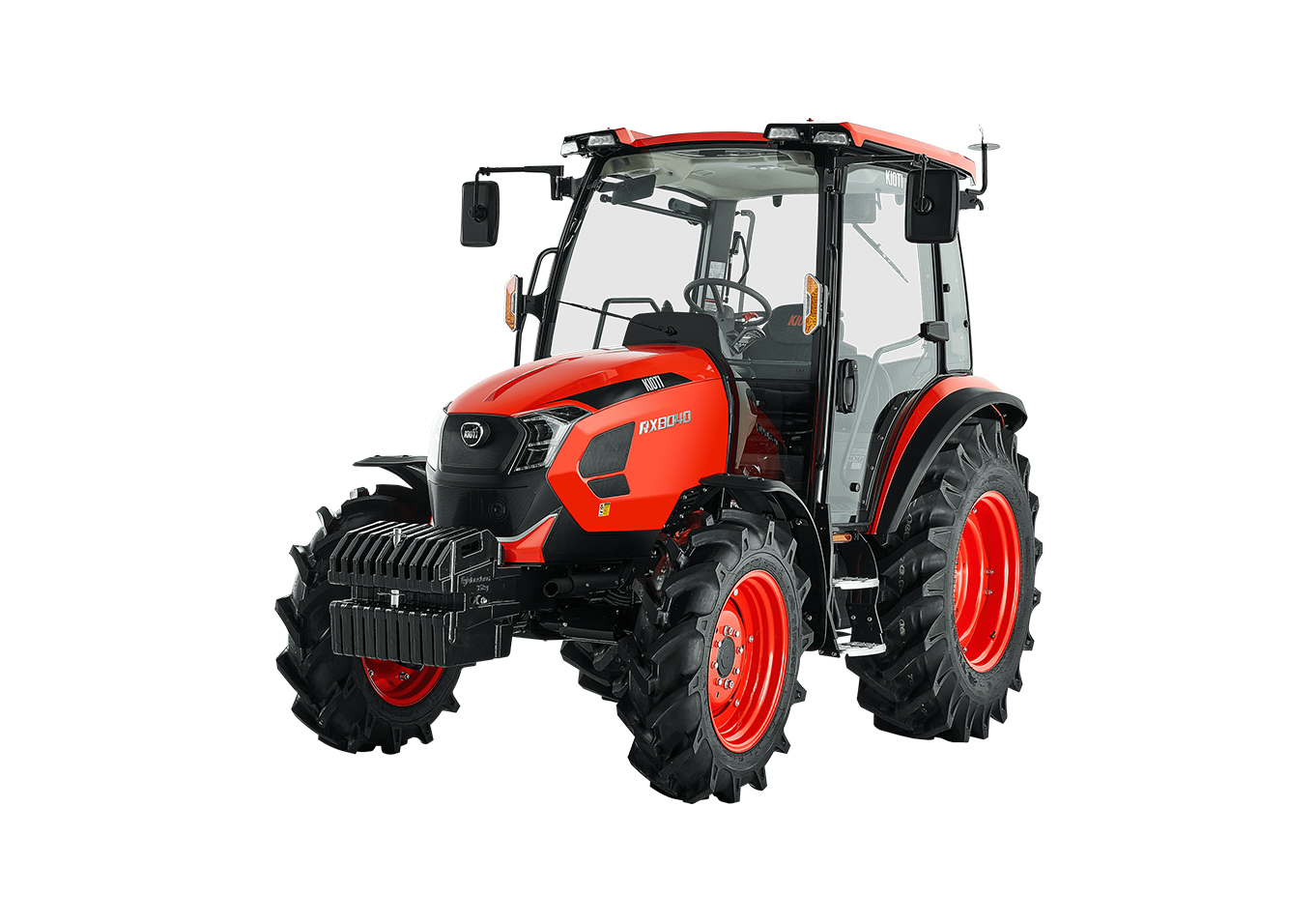

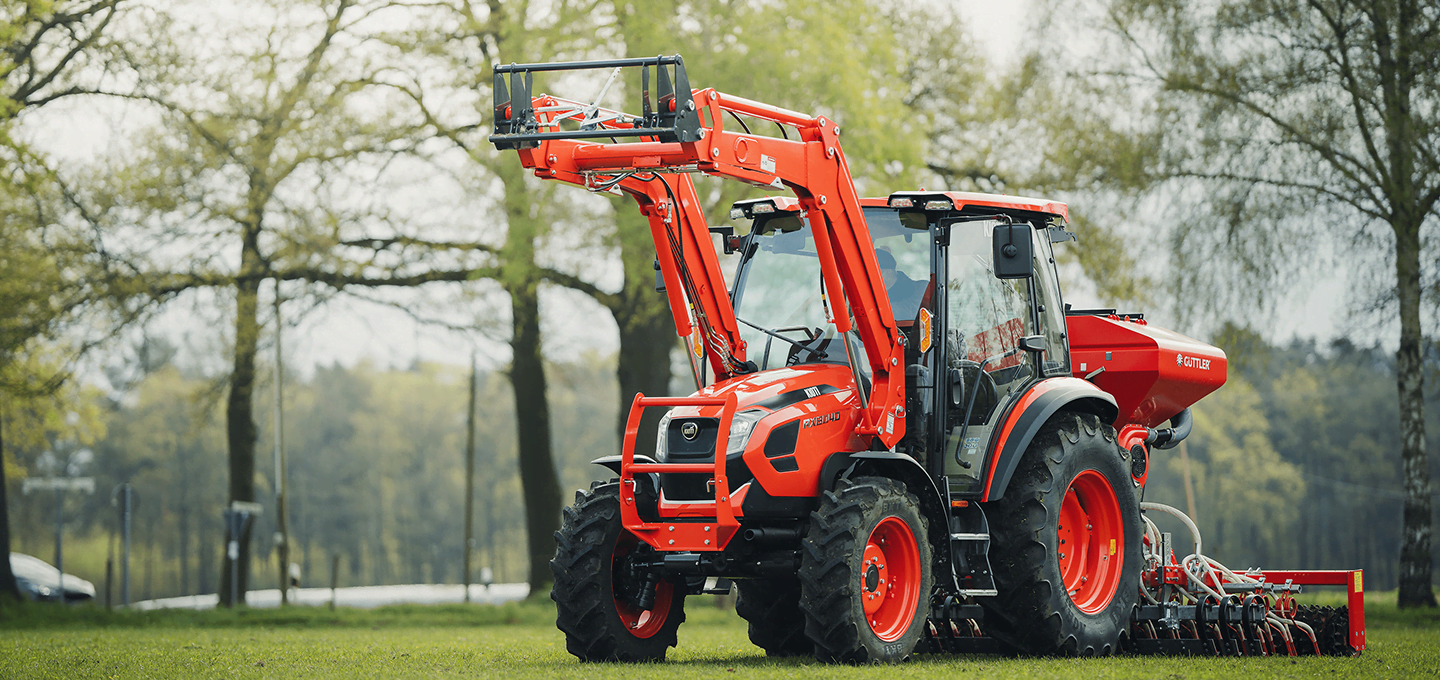

New RX Series Utility Tractors
The new RX Series utility tractors bridge the gap between value and raw power, empowering farmers and ranchers to tackle demanding tasks with ease.

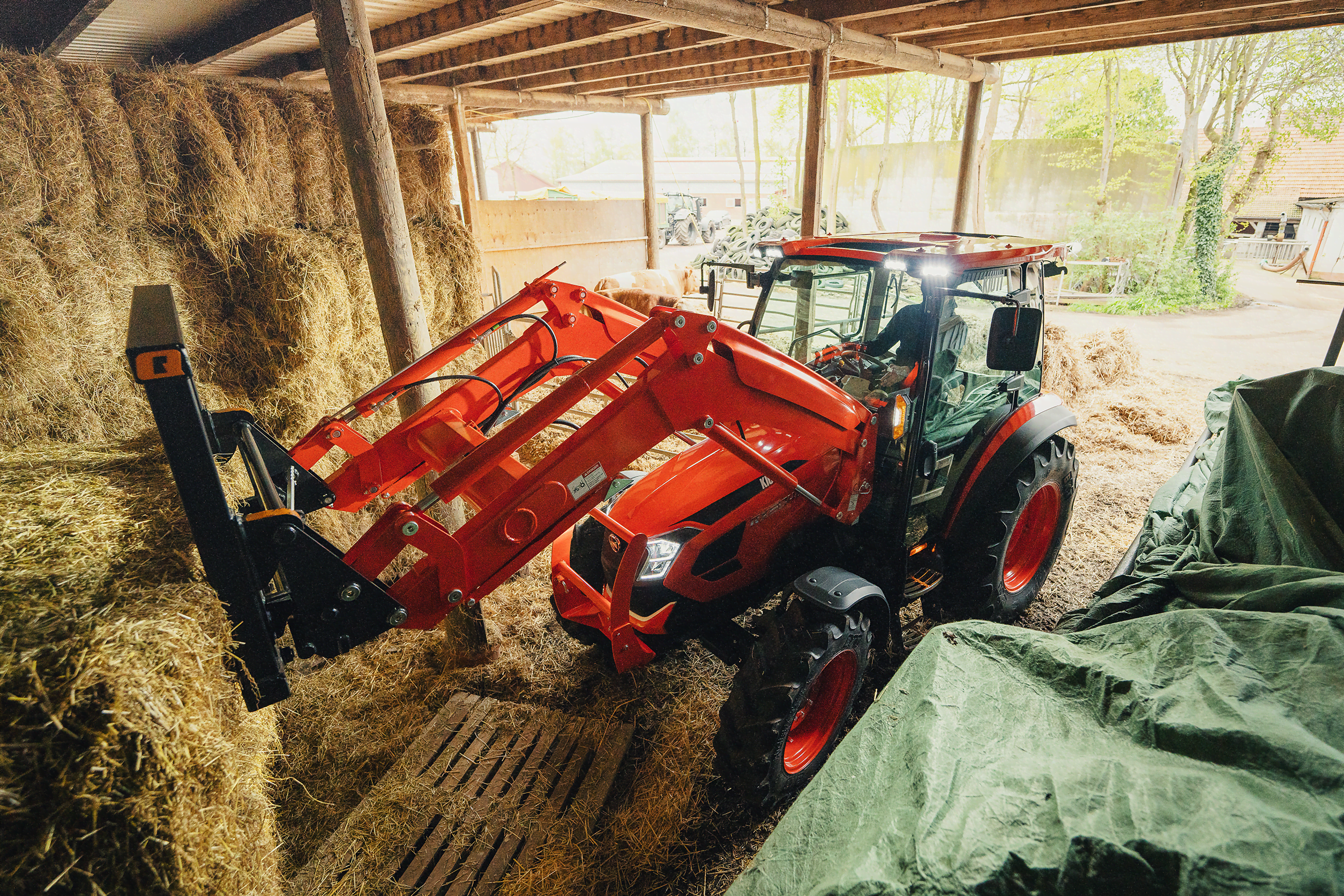

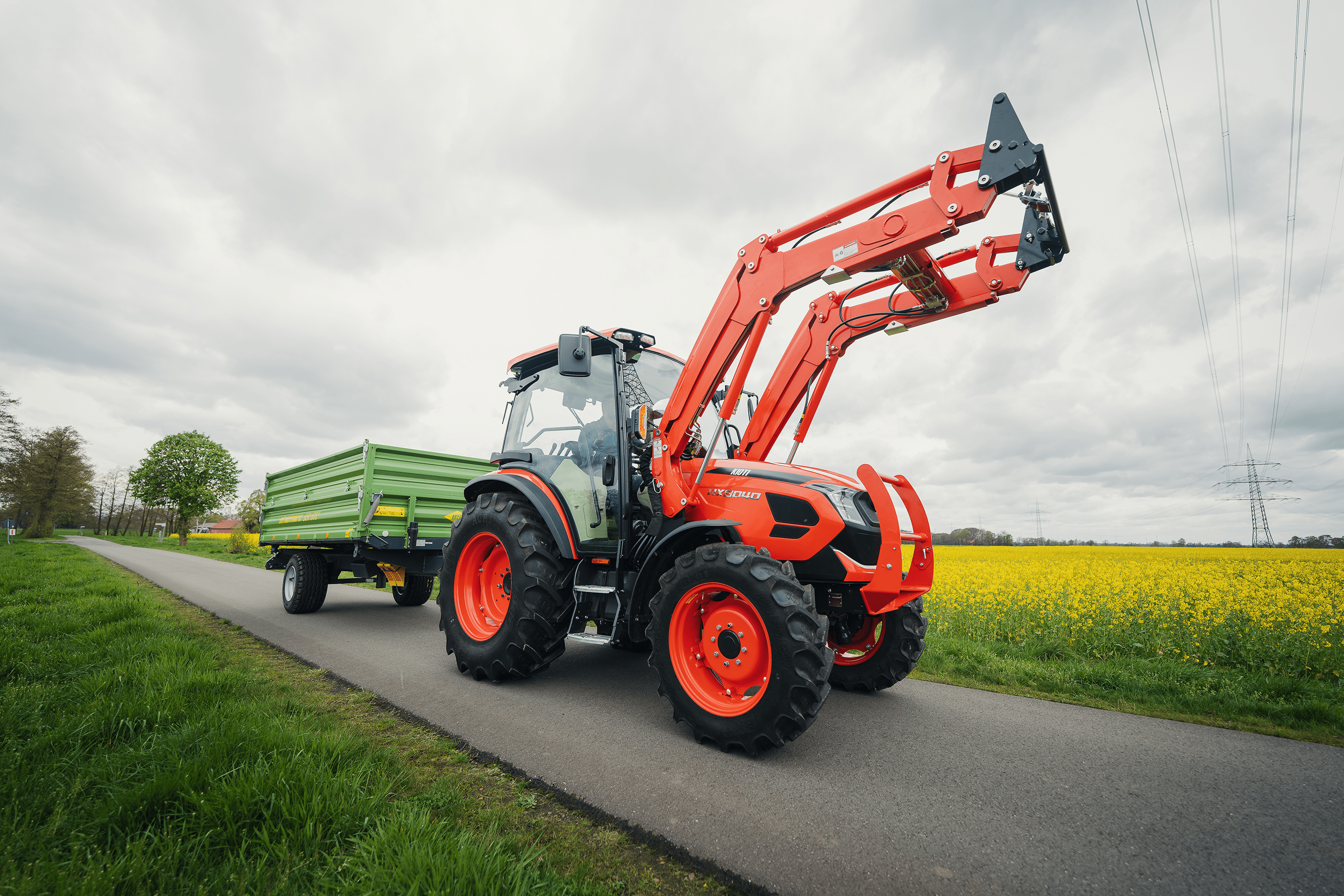

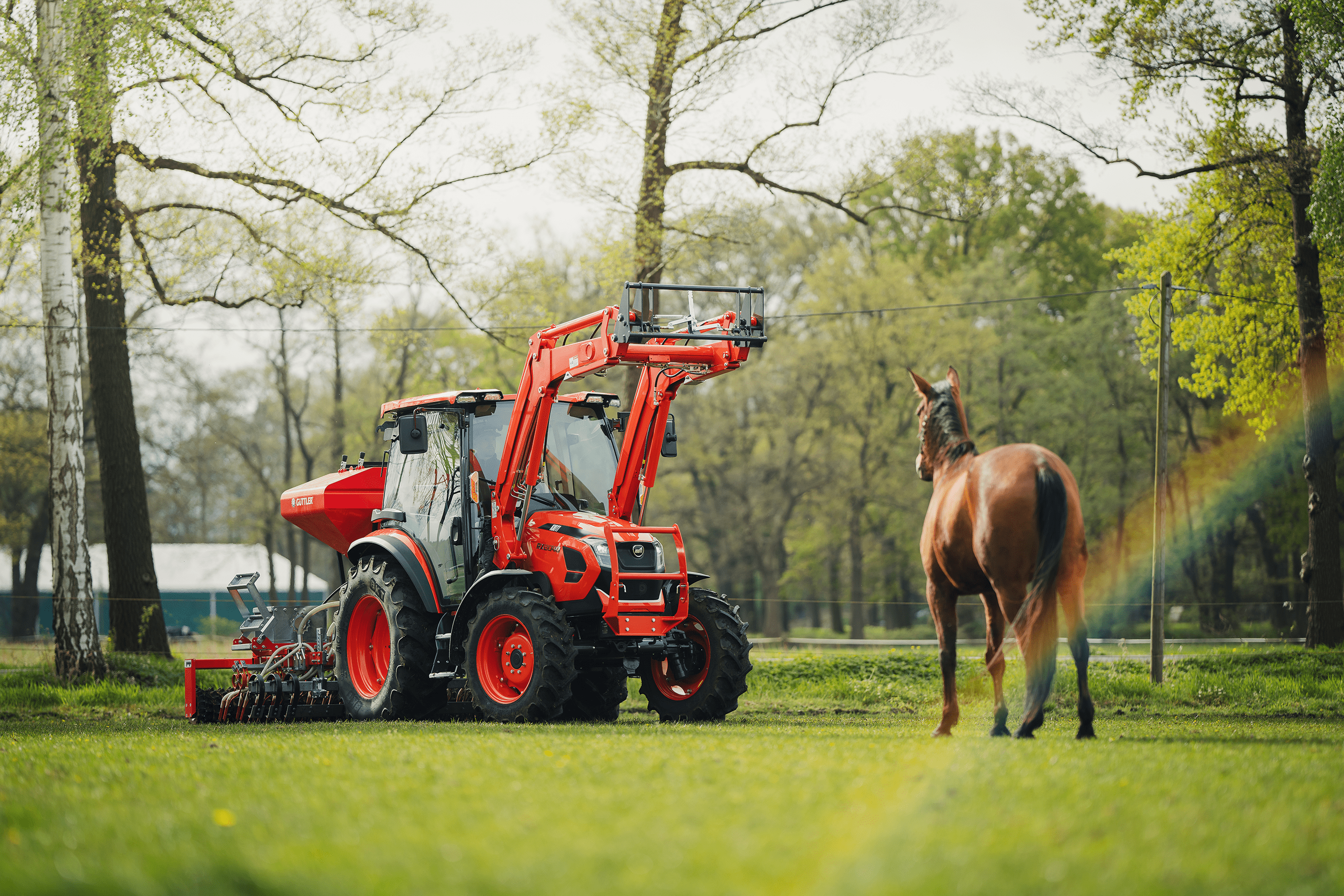

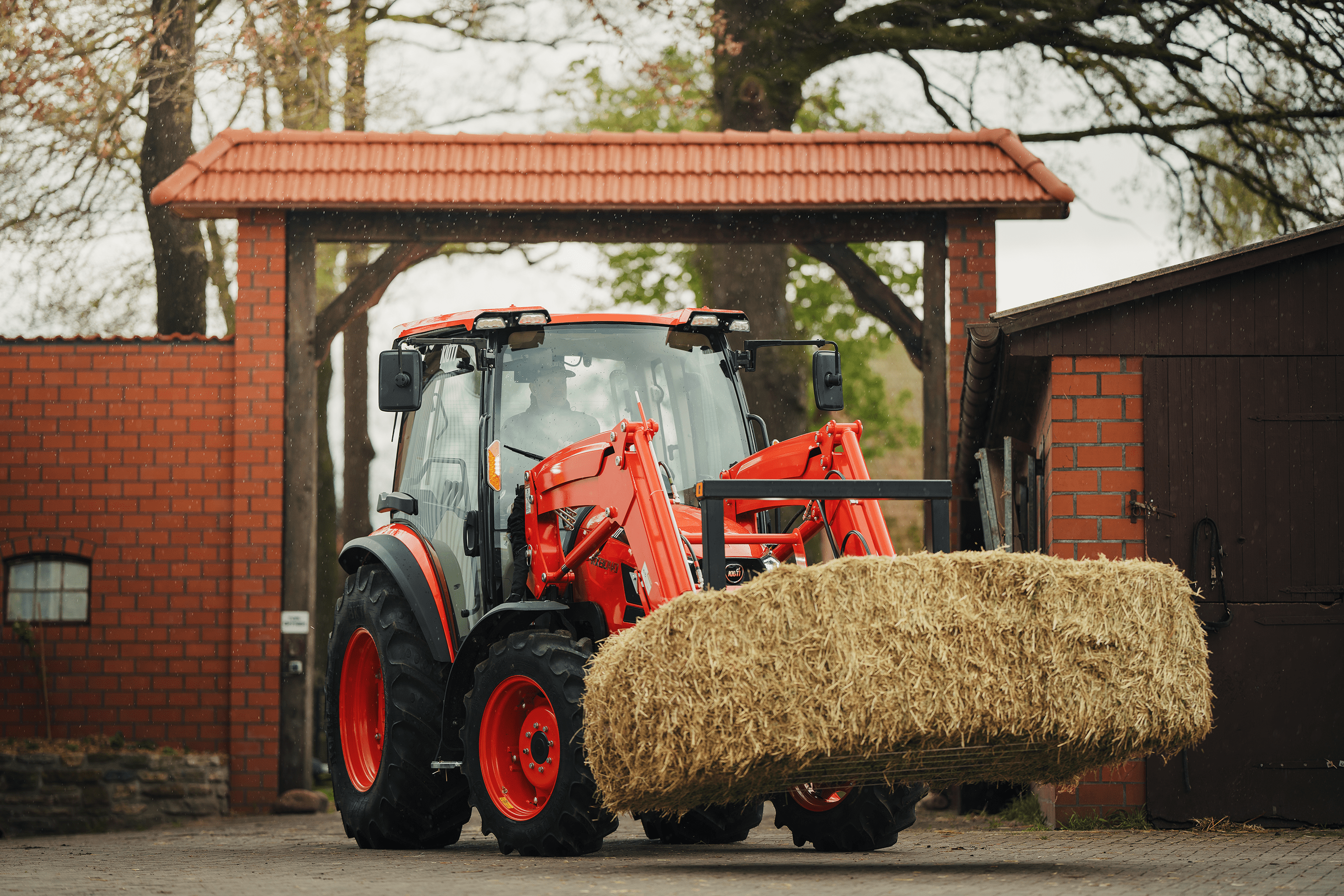

Ideal for Hauling Hay and Livestock Care
-
POWER STEERING
Minimizes the effort required to make tight, repetitive turns. The steering wheel tilts with the simple push of lever, allowing easy adjustment to fit the operator's needs.
-

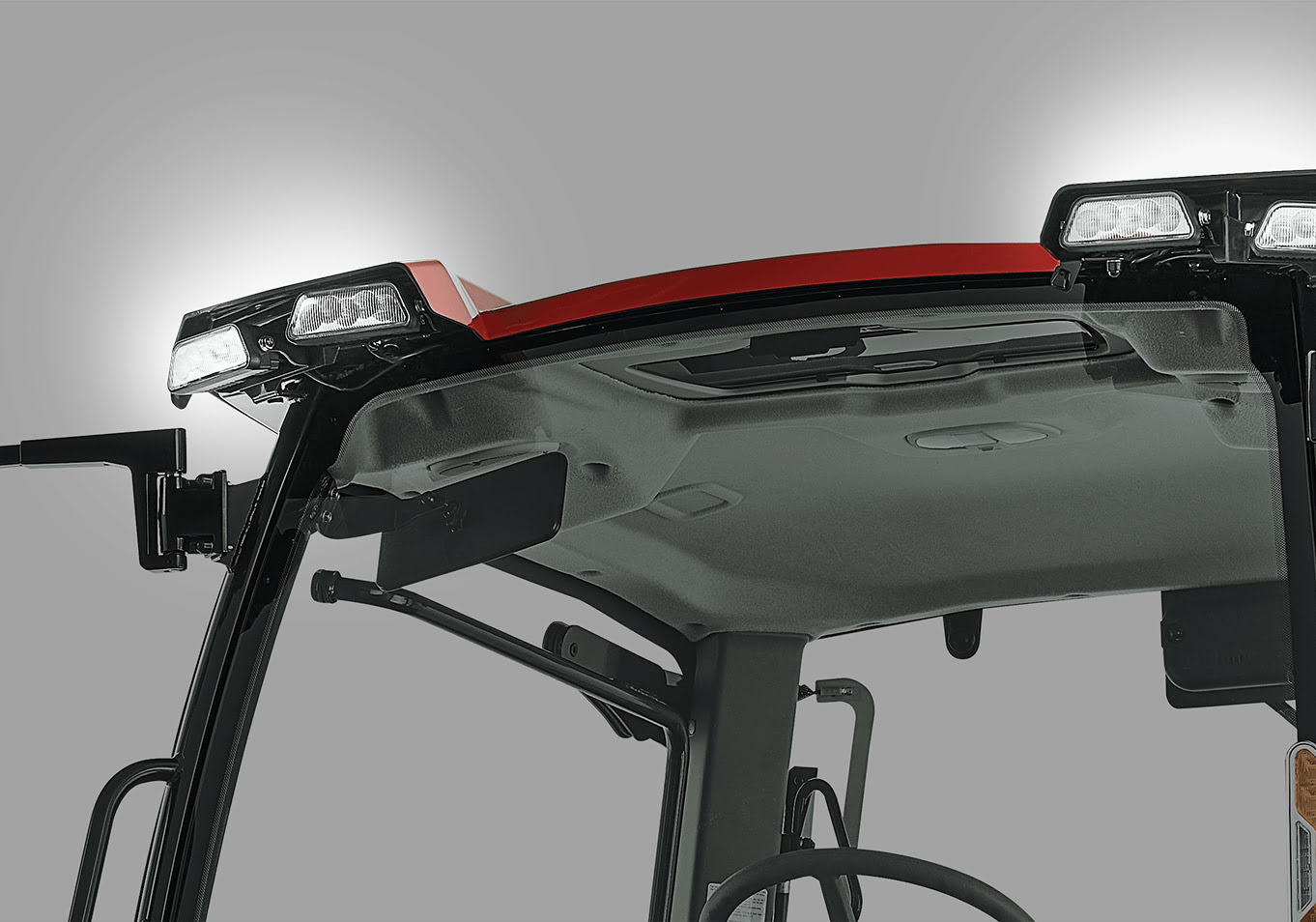

PROJECTION HEAD AND WORKING LAMP
The LED projection head and working lamp pierce the darkness, casting a wide, clear beam that illuminates your field for safe, precise maneuvering even after sunset.
-

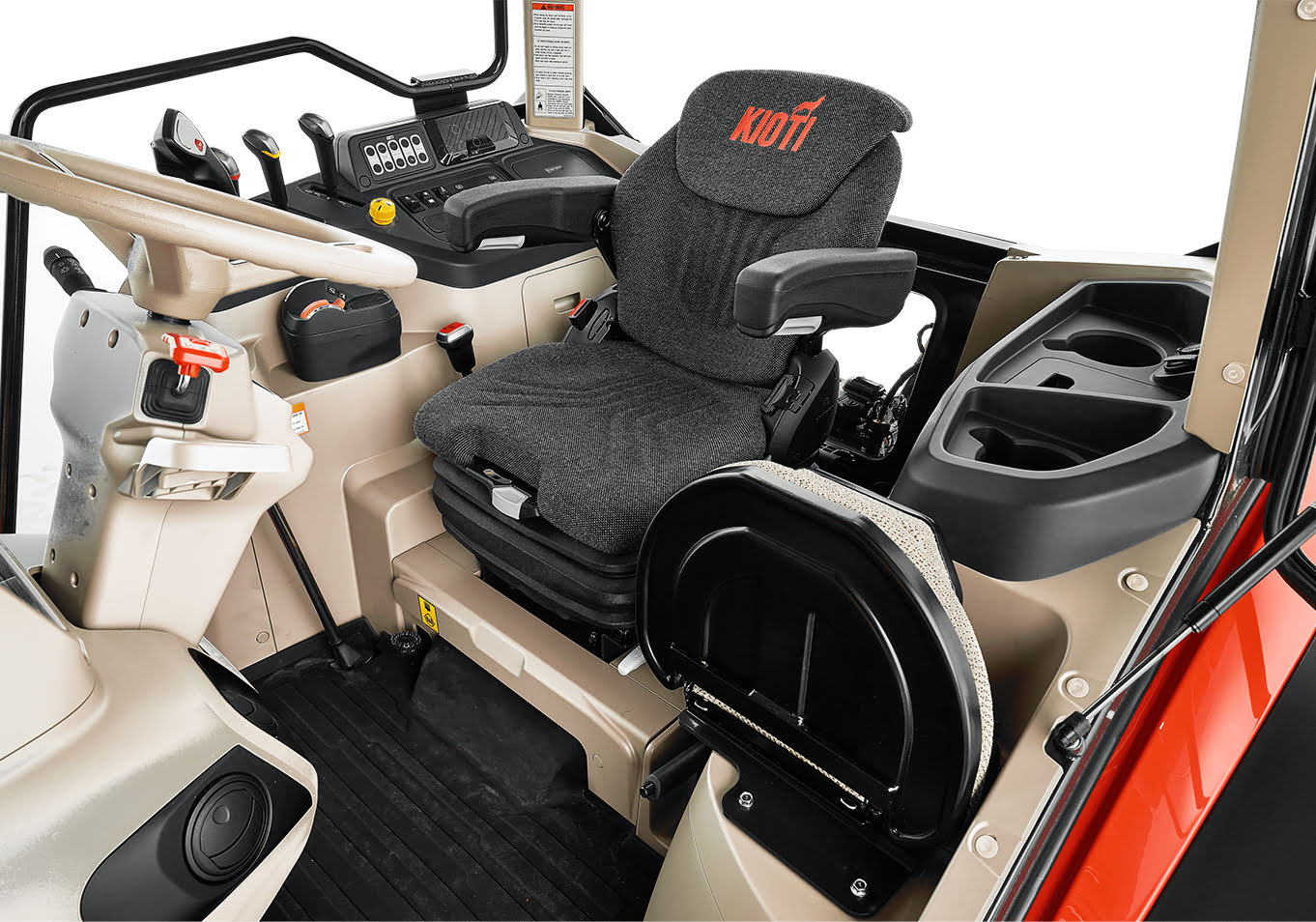

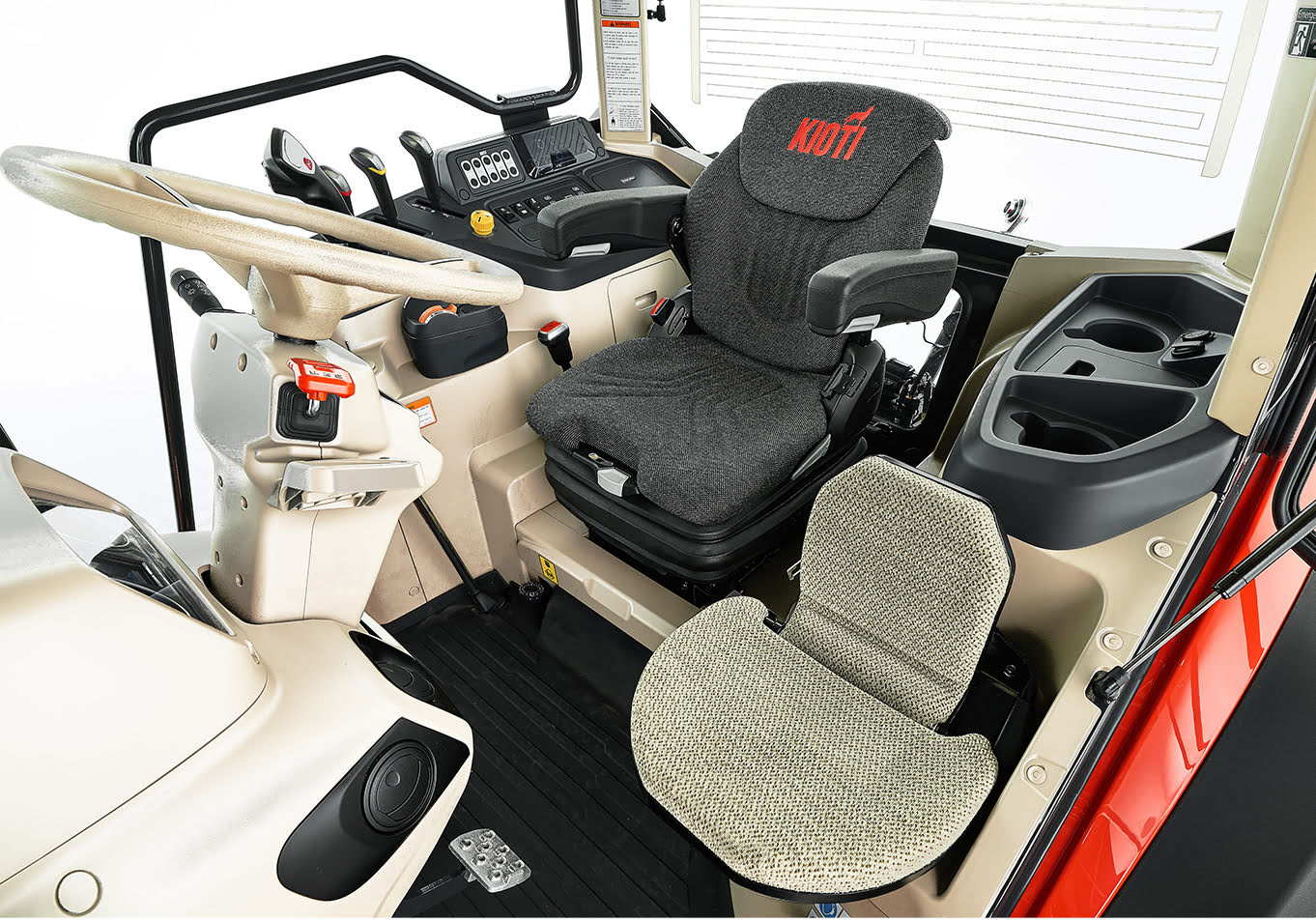

DELUXE SUSPENSION SEAT (CAB MODELS)
The ergonomically designed, fully adjustable suspension seat cradles you in support, no matter how harsh the ride. A handy pocket on the back of the seat gives you instant access to the operator's manual
-
OPTIONAL INSTRUCTOR SEAT (CAB MODELS)
Minimizes the effort required to make tight, repetitive turns. The steering wheel tilts with the simple push of lever, allowing easy adjustment to fit the operator's needs.
-

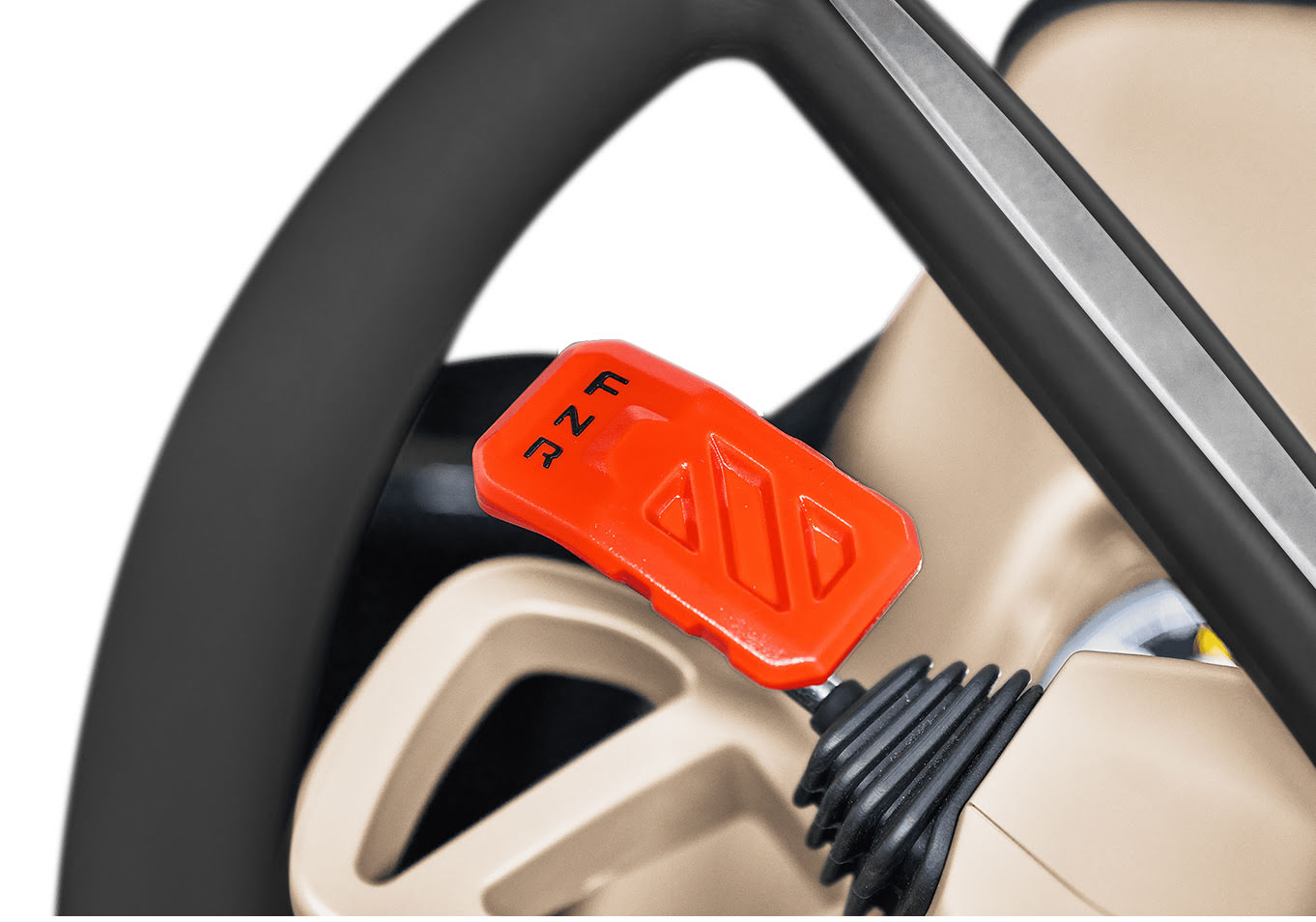

POWER SHUTTLE LEVER (POWER SHUTTLE MODELS)
Effortlessly change forward and reverse direction with the Power Shuttle Lever, no clutch pedal required
-
STREAMLINED HOOD DESIGN
The hood design provides the operator with excellent visibility and the vertical opening enables quick and convenient access for maintenance
-
PUSH BUTTON 4 WHEEL DRIVE
4WD is engaged with the simple push of a button. Auto 4WD engagement allows for increased brake performance
-

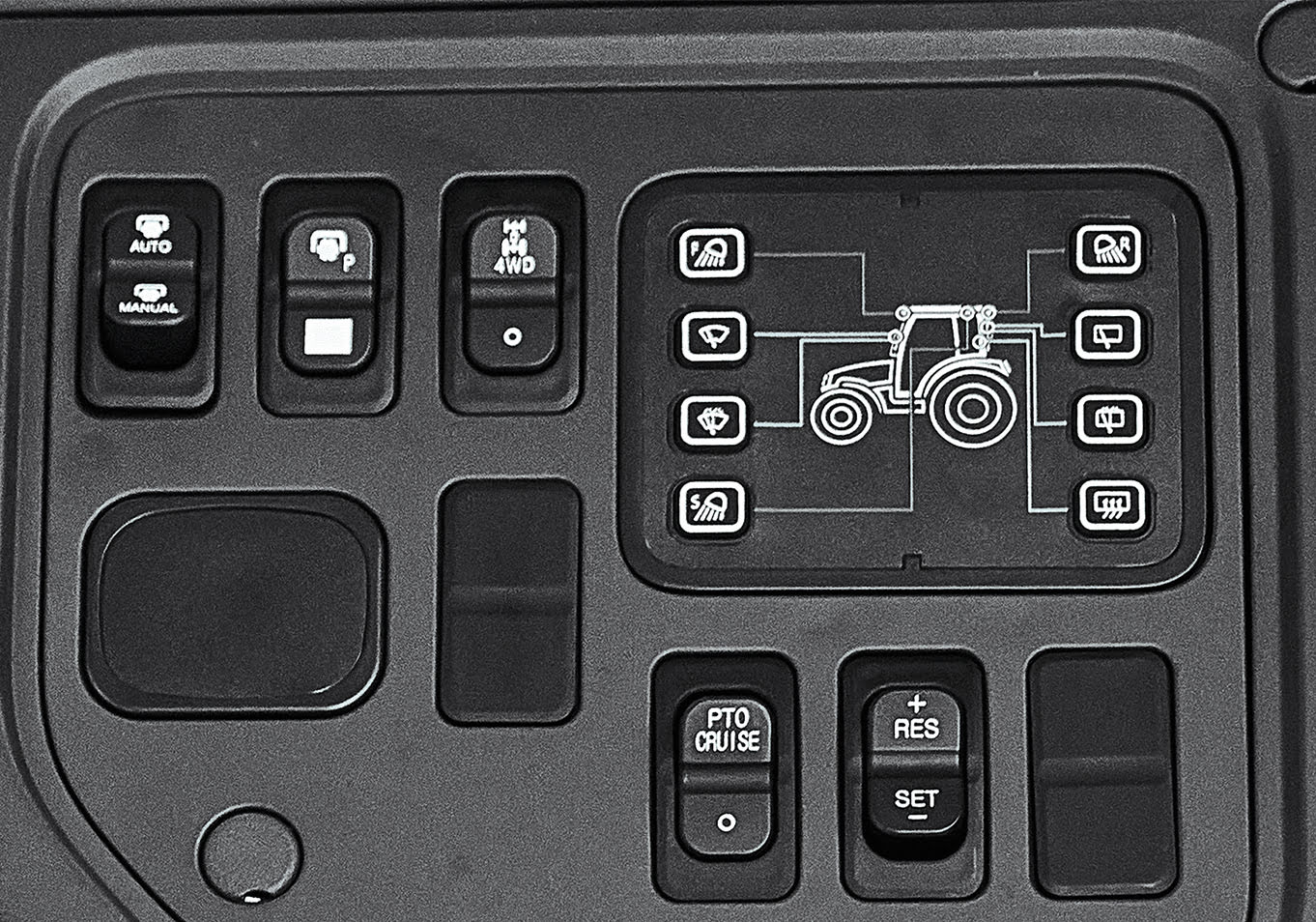

GROUPING OF LEVERS AND SWITCHES
Levers and switches used to conduct similar tasks are grouped for better convenience
-

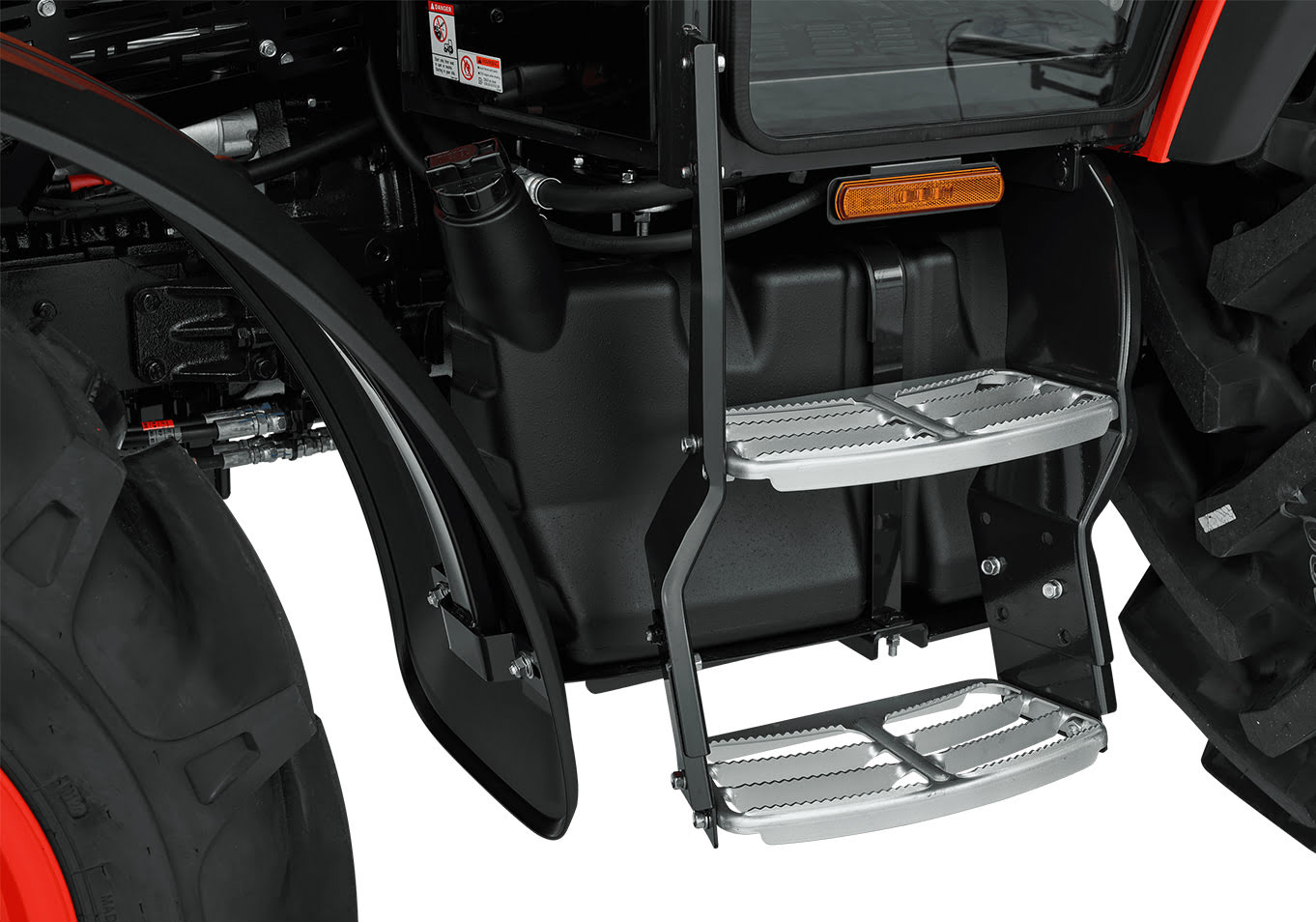

LEFT/RIGHT 2 STEPS
Installed steps on both sides where the bottom level is adjustable to enable workers to easily get on and off anywhere. Installed plates help blow foreign residues from wheels.
-

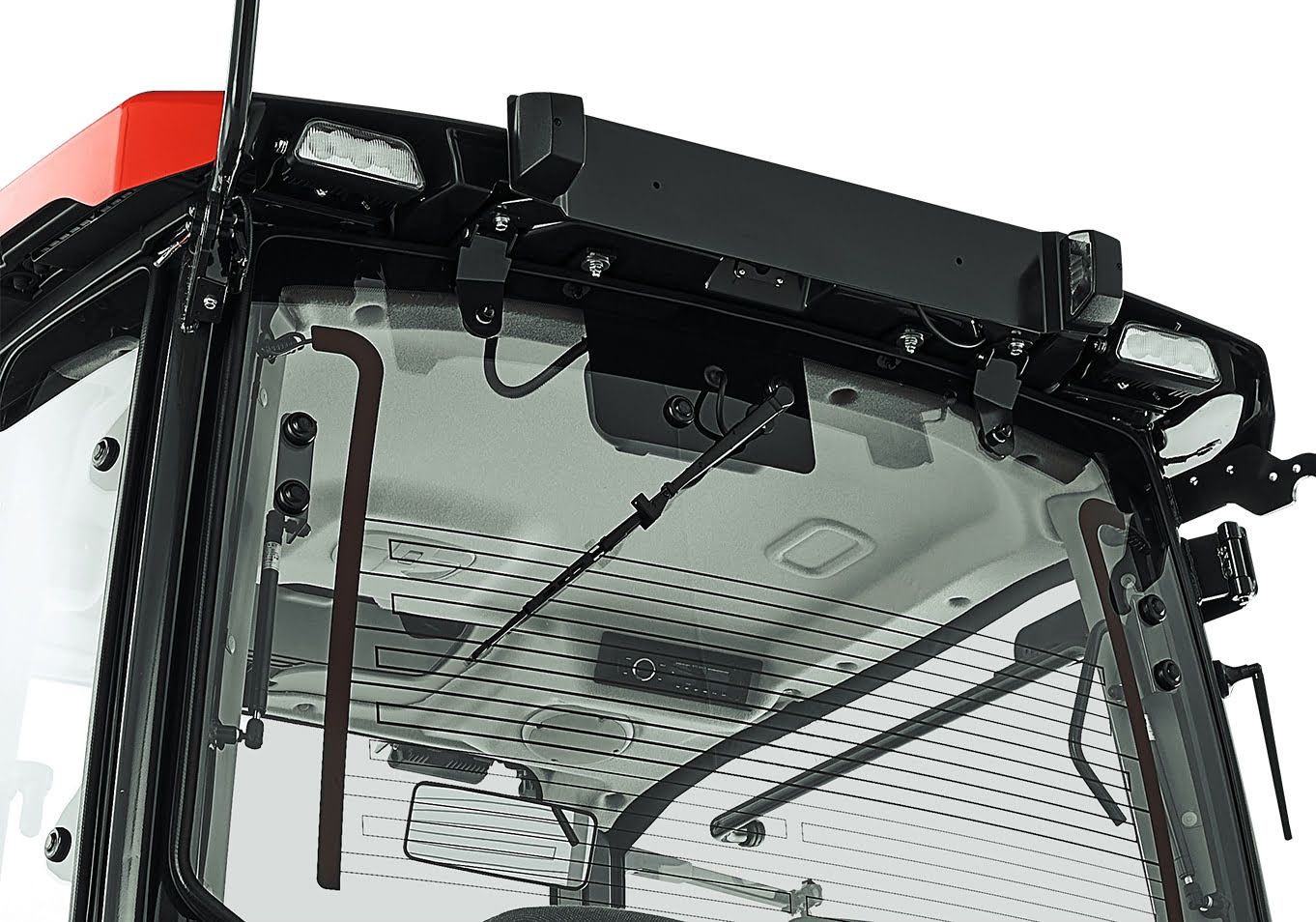

FRONT/REAR WIPER
Enhanced the front wiper motor capacity while introducing user modes for improved performance, facilitating effortless visibility enhancement by effectively clearing away dirt and dust
Gallery
Specifications
- Model
Engine
| Manufacturer | Daedong | Daedong | Daedong | Daedong |
|---|---|---|---|---|
| Model | 4H243T-TP5A | 4H243T-TP5A | 4H243T-TP5A | 4H243T-TP5A |
| Engine Gross Power HP (kw) | 66.4 (49.5) | 73.1(54.5) | 66.4 (49.5) | 73.1(54.5) |
| Engine Gross Power (97/68EC) HP (kw) | 66.4 (49.5) | 73.1(54.5) | 66.4 (49.5) | 73.1(54.5) |
| Engine Gross Power (ECE-R120) HP (kw) | 66.4 (49.5) | 73.1(54.5) | 66.4 (49.5) | 73.1(54.5) |
| Engine Base Power HP (kw) | - | - | - | - |
| Engine Boost Power HP (kw) | - | - | - | - |
| Rated revolution (RPM) | 2600 | 2600 | 2600 | 2600 |
| Max. Torque (Nm) | 240.5 | 240.5 | 240.5 | 240.5 |
| Torque Reserve Percentage (%) | 20.9 | 20 | 20.9 | 20 |
| No. of cylinders | 4 | 4 | 4 | 4 |
| Total Displace cc (cu) | 2435 (148.6) | 2435 (148.6) | 2435 (148.6) | 2435 (148.6) |
Capacity
| Fuel tank (ℓ) | 100 | 100 | 100 | 100 |
|---|---|---|---|---|
| Urea tank (ℓ) | - | - | - | - |
PTO
| Rated PTO Power/RPM (HP) | 54.9 | 60.9 | 54.9 | 60.9 |
|---|---|---|---|---|
| Maximum PTO Power (HP) | 58.4 | 63.5 | 58.4 | 63.5 |
| Maximum PTO Power (HP/RPM) | - | - | - | - |
| Rear PTO | SAE 1-3/8, 6 Spline | SAE 1-3/8, 6 Spline | SAE 1-3/8, 6 Spline | SAE 1-3/8, 6 Spline |
| Rear PTO Type | Independent | Independent | Independent | Independent |
| Rear PTO (RPM) | 540 | 540 | 540 | 540 |
| Mid PTO (RPM) | - | - | - | - |
| Ground PTO | NA | NA | NA | NA |
Hydraulic
| 3 Point Lift Control Type | - | - | - | - |
|---|---|---|---|---|
| Implement Pump (ℓ/min) | - | - | - | - |
| Power Steering Pump (ℓ/min) | - | - | - | - |
| Total hydraulic flow (ℓ/min) | - | - | - | - |
| 3-point hitch type | Category 2 | Category 2 | Category 2 | Category 2 |
| Lower Link type | Quick Type | Quick Type | Quick Type | Quick Type |
| at lift point (Max.) (kg.f) | 2533 | 2533 | 2533 | 2533 |
| at lift point (Horizontal position) (kg.f) | 2533 | 2533 | 2533 | 2533 |
| Lift capacity at lift point | - | - | - | - |
| Lift capacity at 24 in.behind lift point | 1963 | 1963 | 1963 | 1963 |
| at 610mm point (Through the full range) (kg.f) | - | - | - | - |
| No. of standard remote valves (Front/Rear) | - | - | - | - |
| No. of Std. remote valve's ports (Rear) | - | - | - | - |
Drive Train
| Transmission | Power Shuttle | Power Shuttle | Power Shuttle | Power Shuttle |
|---|---|---|---|---|
| No. of speeds | 20 X 20 | 20 X 20 | 20 X 20 | 20 X 20 |
| Mechanical Differential Lock | - | - | - | - |
| Shuttle Type | Power Shuttle | Power Shuttle | Power Shuttle | Power Shuttle |
| Hi-Low | - | - | - | - |
| Brake Type | - | - | - | - |
| Main Brake Type | Wet Multi Disc | Wet Multi Disc | Wet Multi Disc | Wet Multi Disc |
| Parking Brake Type | Wet Multi Disc | Wet Multi Disc | Wet Multi Disc | Wet Multi Disc |
| Main Clutch Type | Hydro Multi Wet Disc Clutch | Hydro Multi Wet Disc Clutch | Hydro Multi Wet Disc Clutch | Hydro Multi Wet Disc Clutch |
| Front Wheel Drive System | Hydro Multi Wet Disc Clutch | Hydro Multi Wet Disc Clutch | Hydro Multi Wet Disc Clutch | Hydro Multi Wet Disc Clutch |
| PTO Type (PTO RPM) | - | - | - | - |
Traveling Speeds
| Forward (km/h) | 38.3 | 38.3 | 38.3 | 38.3 |
|---|---|---|---|---|
| Reverse (km/h) | TBD | TBD | TBD | TBD |
Dimensions
| Overall length (w/o front weight and w/o 3pt hitch) (mm) | - | - | - | - |
|---|---|---|---|---|
| Overall length (w/o front weight and w/3pt hitch) (mm) | - | - | - | - |
| Overall length (w/weight support and w/3pt hitch) (mm) | 3990 | 3990 | 3990 | 3990 |
| Overall length (includes 3-pt hitch) (mm) | - | - | - | - |
| Overall length (without 3-pt hitch) (mm) | - | - | - | - |
| Overall length (with 3 point & front weight) (mm) | - | - | - | - |
| Overall length (w/front weight and w/3pt hitch) (mm) | - | - | - | - |
| Overall width (minimum tread) (mm) | 2140 | 2140 | 2180 | 2180 |
| Overall height (ROPS) (mm) | 2917 | 2917 | NA | NA |
| Overall height (CAB) (mm) | NA | NA | 2760 | 2760 |
| Wheel base in. (mm) | 2170 | 2170 | 2170 | 2170 |
| Tread Width (Front) (mm) | - | - | - | - |
| Tread Width (Rear) (mm) | - | - | - | - |
| Ground Clearence in. (mm) | 477 | 477 | 477 | 477 |
| Turning radius(w/o brake) (mm) | 3.92 | 3.92 | 3.92 | 3.9 |
| Turning radius (w/brake) (mm) | - | - | - | - |
| Weight with ROPS (kg.f) | 745 | 2836 | NA | NA |
| Weight with Cabin and AG tires (kg.f) | NA | NA | 3091 | 3182 |
| Max. Permissible Weight (EEC Standard) (kg.f) | - | - | - | - |
Tire Size
| AG Tire - Front | 11.2-24 | 11.2-24 | 11.2-24 | 11.2-24 |
|---|---|---|---|---|
| AG Tire - Rear | 16.9-30 | 16.9-30 | 16.9-30 | 16.9-30 |
| Turf Tire - Front | - | - | - | - |
| Turf Tire - Rear | - | - | - | - |
| Industrial Tire - Front | - | - | - | - |
| Industrial Tire - Rear | - | - | - | - |
| Radial - Front | - | - | - | - |
| Radial - Rear | - | - | - | - |
